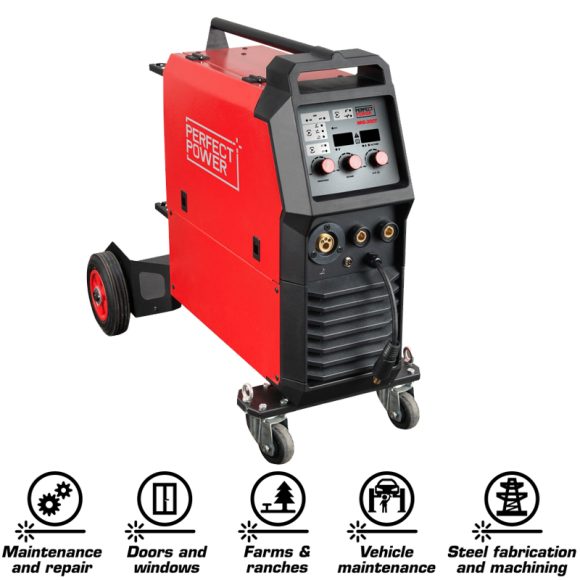

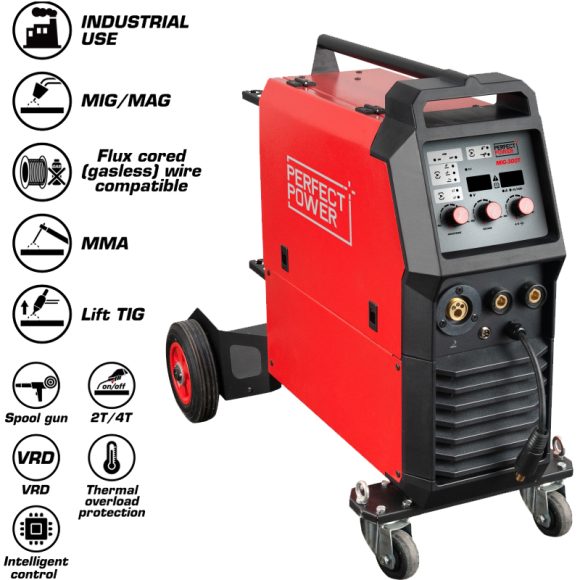

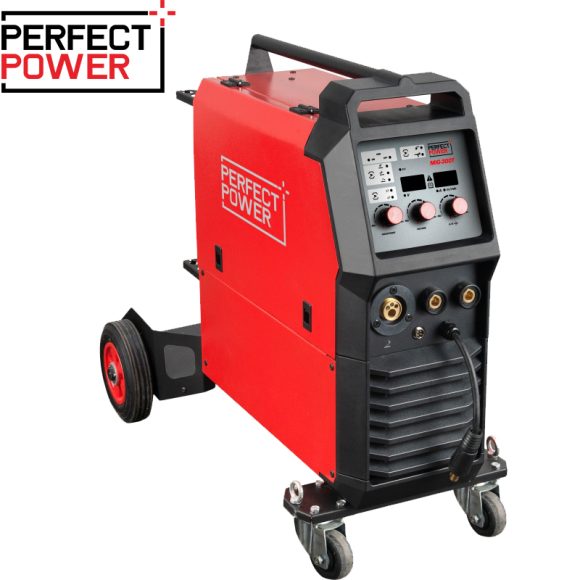

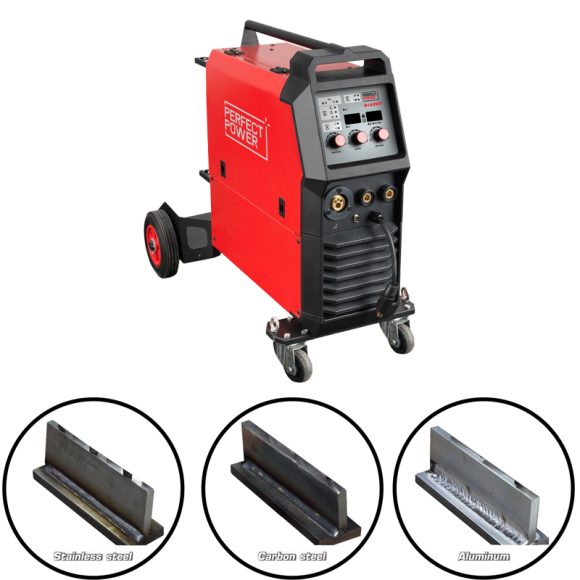

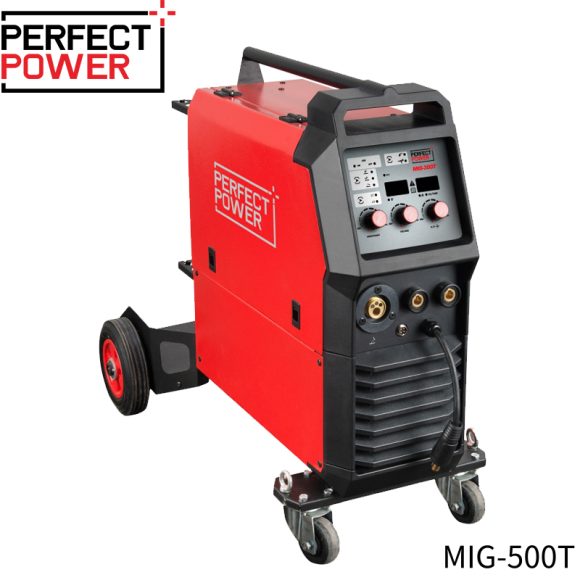

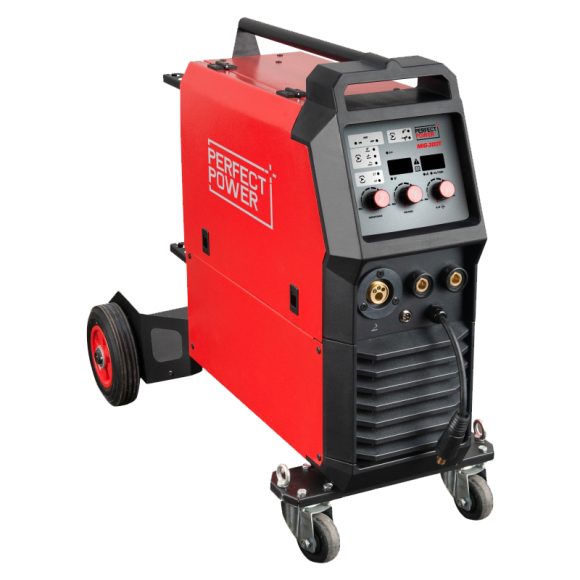

MIG-500T MIG MAG IGBT Inverter Welding Machine

(0 Reviews)

1. Multi-function welding – MIG/MAG, LIFT TIG, MMA, Spool Gun, and FLUX CORED Wire welding. 2. Capable for 15kg wire spool. 3. Professional MMA welding process with VRD function. 4. 2T/4T function. 5. Stable arc with less spatter. 6. Ideal for use in outdoor and indoor conditions. 7. Standard equipped with cylinder rack.

Availability: In Stock

Categories: Equipments, MIG Welding Equipment, Multi-Process Welding Machines

Description
Additional information

1. Multi-function welding – MIG/MAG, LIFT TIG, MMA, Spool Gun, and FLUX CORED Wire welding.
2. Capable for 15kg wire spool.
3. Professional MMA welding process with VRD function.
4. 2T/4T function.
5. Stable arc with less spatter.
6. Ideal for use in outdoor and indoor conditions.
7. Standard equipped with cylinder rack.

Model	MIG-500T
Power input AC(V)	3ph 380V ±15%
Power input frequency(Hz)	50/60
Max. Load Power Capacity(kVA)	24.7(MIG) 25.3(MMA)
Rated current input(A)	37.5(MIG) 38.4(MMA)
Rated output current(A)/voltage(V)	500/39.0(MIG) 500/40.0(MMA)
Welding current range(A)	50-500(MIG) 25-500(MMA)
Open circuit voltage DC(V)	73
Rated duty cycle(%)	60
Wire Feeding Speed(M/min)	2.4-24
IP grade	IP21
Insulation grade	H
Dimensions(mm)	1000x430x795
Weight (KG)	63
Wire Melting Type	spray transfer
