At Perfect Power Welders, we provide the highest-quality and bestselling discount welding supplies online.
At Perfect Power Welders, we provide the highest-quality and bestselling discount welding supplies online.

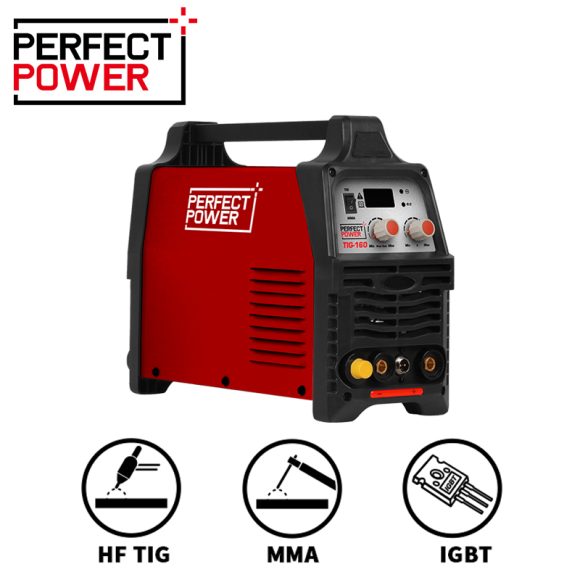

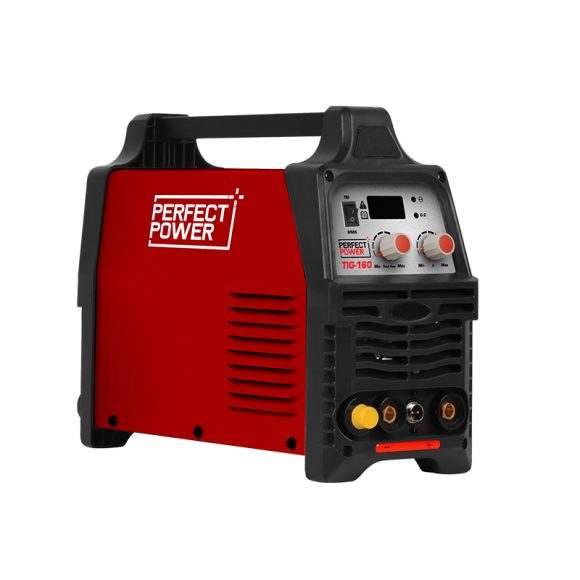

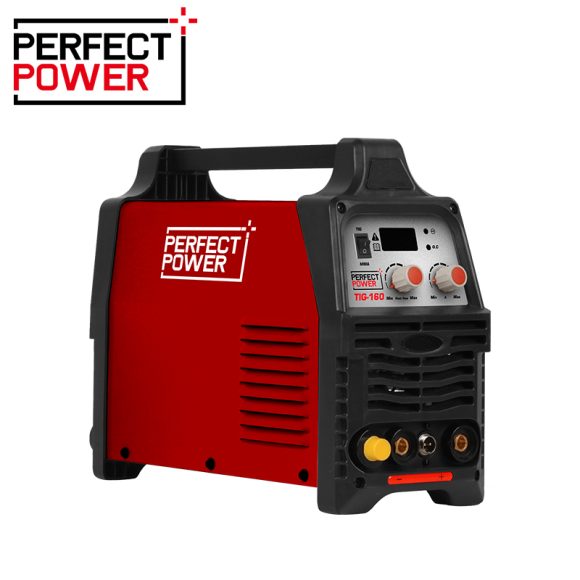

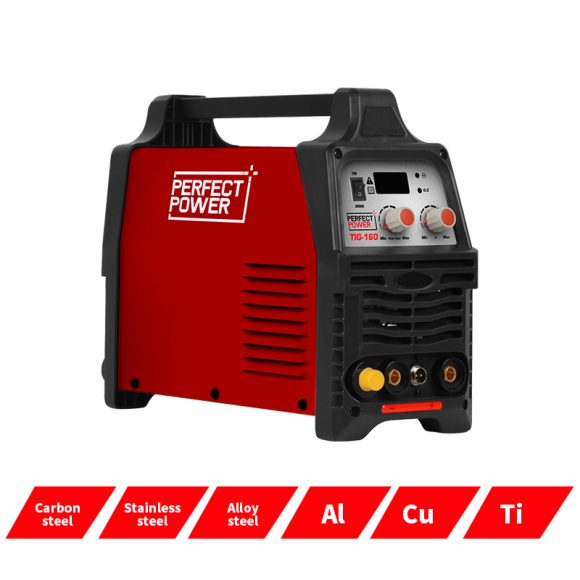

The TIG-160 TIG Welder durable 160A with 1.0-4.5mm welding thickness, this TIG welding machine using IGBT inverter technology with stable performance,full-bridge structure, perfect quality and durable,adopting high frequency and high voltage arc starting, success rate is higher.It’s specialized in use of spot welding, arcing quick response,apply to stainless steel welding, or carbon steel, alloy steel, copper, titanium or and other metals welding.
Availability: In Stock
The TIG-160 TIG Welder durable 160A with 1.0-4.5mm welding thickness, this TIG welding machine using IGBT inverter technology with stable performance,full-bridge structure, perfect quality and durable,adopting high frequency and high voltage arc starting, success rate is higher.It’s specialized in use of spot welding, arcing quick response,apply to stainless steel welding, or carbon steel, alloy steel, copper, titanium or and other metals welding.
1. Both TIG & MMA function.
2. 3pcs circuit structure design,robust and reliable performance.
3. 10A min output current is ideal for thin iron and stainless steel welding.
4. Adjustable post-flow function.
5. Over current & heating protection.
| Model | TIG-160 |
|---|---|
| Power input AC(V) | 1ph 220V ±15% |
| Power input frequency(Hz) | 50/60 |
| Max. Load Power Capacity(kVA) | 4.2 |
| Rated current input(A) | 20.4 |
| Rated output current(A)/voltage(V) | 160/16.4（TIG）, 140/25.6（MMA） |
| Welding current range(A) | 10-160（TIG）, 10-140（MMA） |
| Open circuit voltage DC(V) | 62 |
| Rated duty cycle(%) | 60% |
| IP grade | IP21 |
| Insulation grade | F |
| Dimensions(mm) | 470*280*370 |
| N.W.(kg) | 7.1/10.4 |
