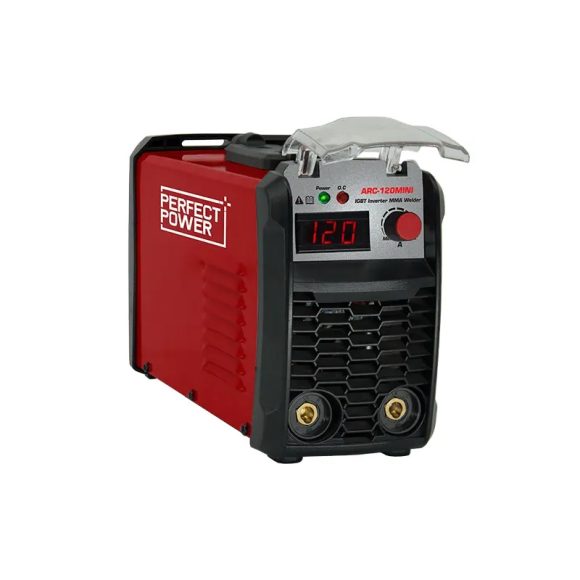

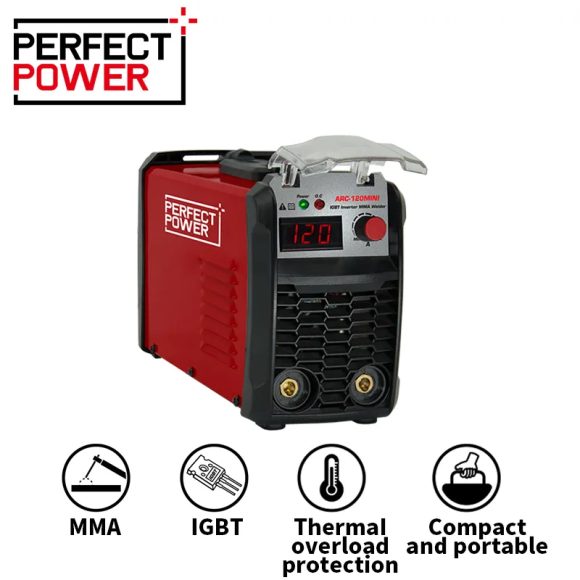

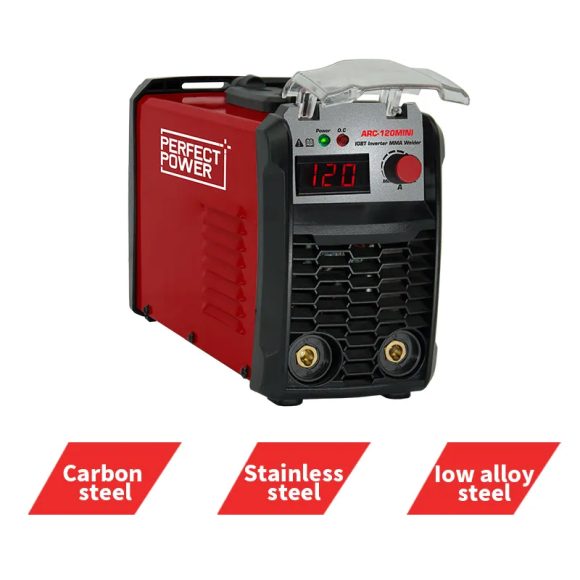

ARC-120MINI IGBT Inverter MMA/Stick Welding Machine

(0 Reviews)

ARC MMA portable welding machine, digital display IGBT inverter beginner mini welder machine with hot start Arc force anti-stick, this MMA welding series can be up to 200amps, ideal for E6011, E6013, E6014, E7018, and welding rods below 1/16-1/8 inch. with a high-duty cycle.

Availability: In Stock

Categories: Equipments, MMA Welding Equipment

Description
Additional information

Small size, lightweight, and high efficiency; easy to move, especially suitable for occasions of high mobility and working at heights;
The advanced control technology is used to meet various welding applications and greatly improve welding performance;
User-friendly and cost-effective;
Operation safety protection against over-voltage, low-voltage over-current, and over-heated;
You can just plug and then weld with a complete accessory set: MMA welding cable, earth cable, welding mask, and steel brush.

Model	ARC-120MINI
Power input AC(V)	1pH 220V+15%
Power input frequency(Hz)	50/60
Rated current input(A)	23.5A
Welding current range(A)	30-120A
Open circuit voltage DC(V)	60V
Duty Cycle	35% 120A, 60% 92A, 100% 71A
Rod max	1.6-3.2mm

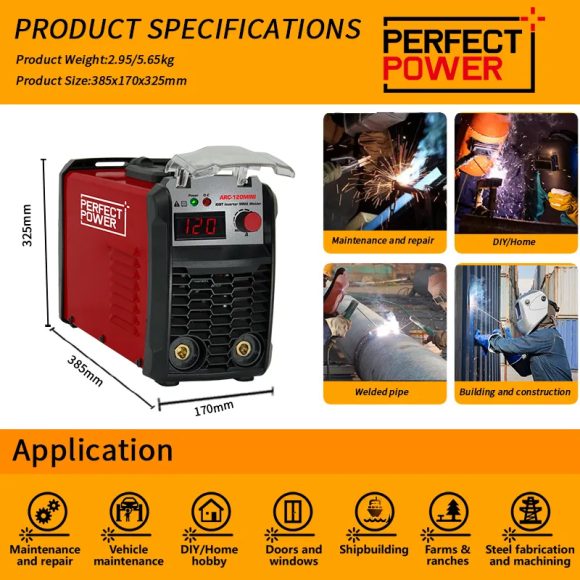

Dimensions(mm)	385170325 mm
N.W(kg)	2.95/5.65kg
