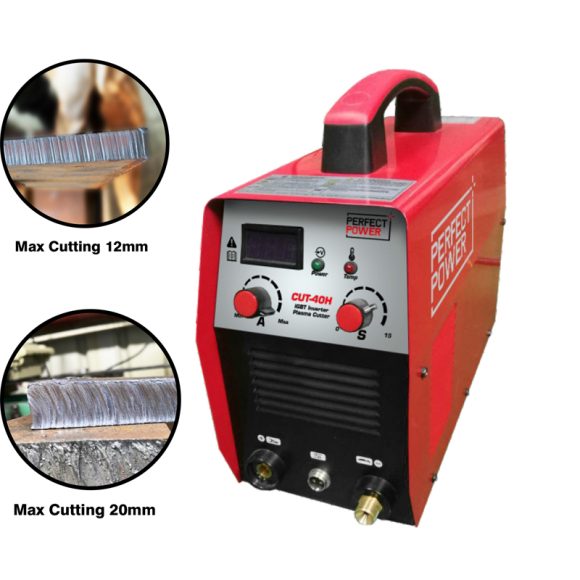

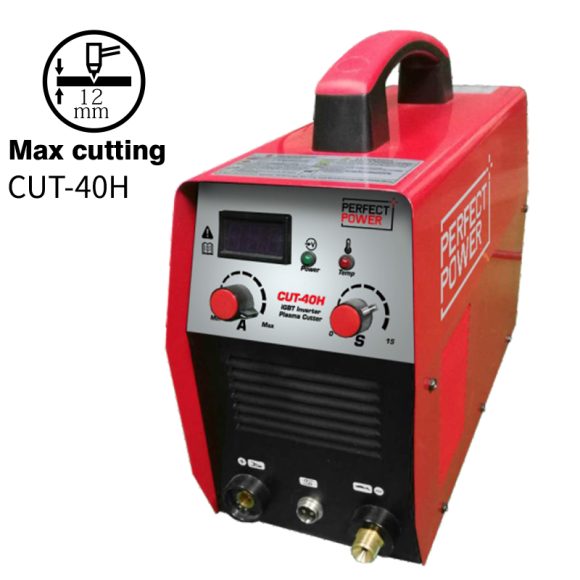

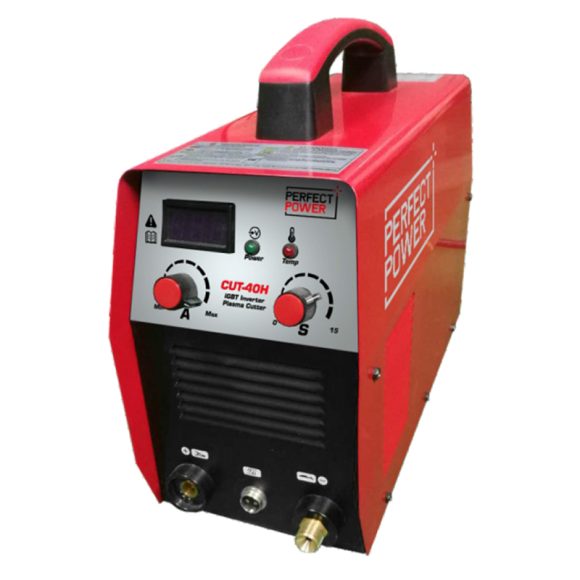

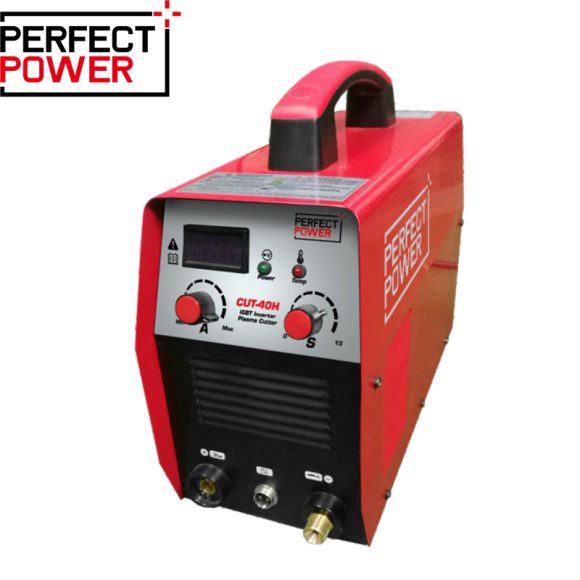

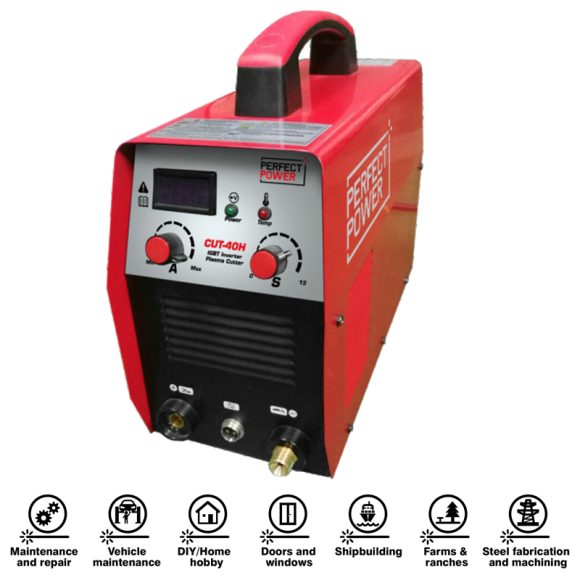

1. Thanks to the advanced inverter technology, the machine is robust with a powerful cutting capacity. 2. Able to be connected with CNC equipment to achieve automatic cutting; the connector is optional. 3. Powerful cutting capacity, narrow cutting seam, and clean cutting edge. 4. 2T/4T self-locking function. 5. Pilot arc starting increases cutting capability and…
Availability: In Stock
1. Thanks to the advanced inverter technology, the machine is robust with a powerful cutting capacity.
2. Able to be connected with CNC equipment to achieve automatic cutting; the connector is optional.
3. Powerful cutting capacity, narrow cutting seam, and clean cutting edge.
4. 2T/4T self-locking function.
5. Pilot arc starting increases cutting capability and cutting speed, improving the service life of torch kit.
6. Operation safety protection against over-voltage, low-voltage, over-current and over-heated.
7. Heavy-duty cycle for industrial use.
| Model | CUT-40H |
|---|---|
| Power input AC(V) | 1ph 220V ±15% |
| Power input frequency(Hz) | 50/60 |
| Max. Load Power Capacity | 4.5 |
| Rated current input(A) | 24.1 |
| Rated output current(A)/voltage(V) | 40/96.0 |
| Max. cutting current (A) | 40 |
| Open circuit voltage DC(V) | 231 |
| Rated duty cycle(%) | 35 |
| Max.cutting thickness(mm) | 18 |
| IP grade | IP21 |
| Insulation grade | F |
| Dimensions(mm) | 455*270*345 |
| Weight (KG) | 4.5/6.6 |
