At Perfect Power Welders, we provide the highest-quality and bestselling discount welding supplies online.
At Perfect Power Welders, we provide the highest-quality and bestselling discount welding supplies online.

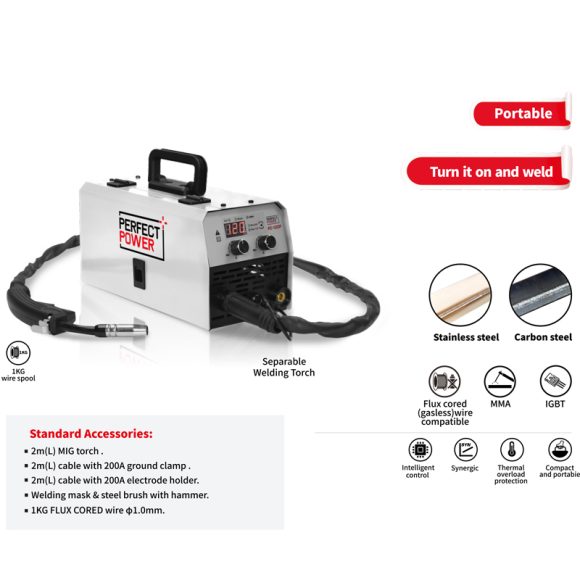

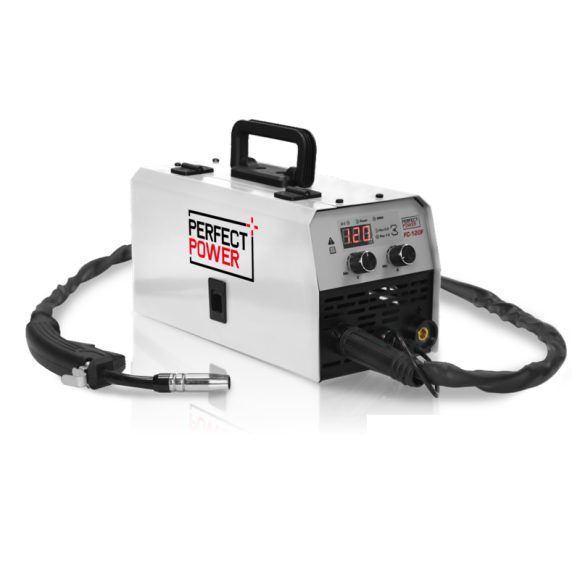

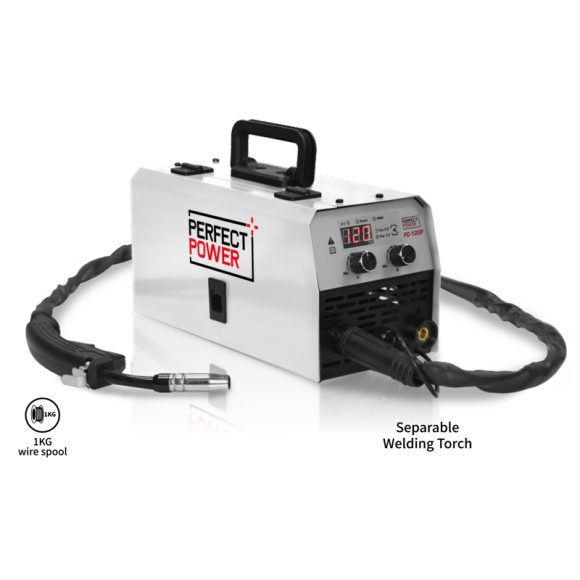

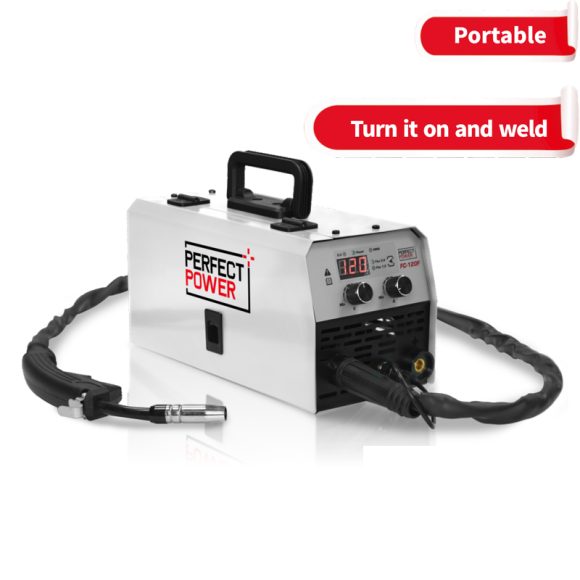

FC-120X 120 AMP Flux Core Gasless Welder, is your go-to solution for all your welding needs. Whether you’re a DIY enthusiast or a professional welder, this welder offers exceptional performance, versatility, and ease of use. With a power output of 120 AMP MIG welder, this welder provides ample welding power to tackle a wide range of projects. From automotive repairs to fabrication tasks, this welder delivers precise and reliable welds, ensuring strong and durable connections. Equipped with a flux core welding feature, this welder eliminates the need for external shielding gas, making it incredibly convenient and cost-effective. The flux core wire creates its own shielding gas when heated, providing excellent weld penetration and reducing the risk of weld defects.
Availability: In Stock
FC-120X 120 AMP Flux Core Gasless Welder, is your go-to solution for all your welding needs. Whether you’re a DIY enthusiast or a professional welder, this welder offers exceptional performance, versatility, and ease of use. With a power output of 120 AMP MIG welder, this welder provides ample welding power to tackle a wide range of projects. From automotive repairs to fabrication tasks, this welder delivers precise and reliable welds, ensuring strong and durable connections. Equipped with a flux core welding feature, this welder eliminates the need for external shielding gas, making it incredibly convenient and cost-effective. The flux core wire creates its own shielding gas when heated, providing excellent weld penetration and reducing the risk of weld defects.
1. Multi-function: Gasless flux cored wire welding and MMA.
2. Compact design, lightweight, but robust.
3. User-friendly and cost-effective.
4. Internal wire feeder, gear driven, support 1kg wire feeding.
5. Centralized control adapts to all kinds of air-free self-protecting wire less than 1.0 mm.
6. Equipped with a trimmer potentiometer on the control panel,it is more convenient for the voltage compensation of welding to make the welding effect more perfect.
7. MMA supports covered electrode welding with a maximum diameter of 3.2mm, with stable output current and continuous arc during welding.
8. Overheat, overcurrent, and overvoltage protection.
2M(L) 2*2.5+1mm² Power Cable(EUR Blug)
2M(L)16mm² cable with 300A ground clamp
2M(L)16mm² cable with 200A electrode holder
1x Welding Mask
1x Brush / Hammer
1x φ1.0mm 1KG Flux cored wire
| Power input AC(V) | 1ph 110V/220V ±15% / 1ph 220V ±15% |
|---|---|
| Power input frequency(Hz) | 50/60Hz / 50/60Hz |
| Max. Load Power Capacity(kVA) | 4.0 kVA / 4.0 kVA |
| Rated current input(A) | 35.5A / 17.4A |
| Rated output current(A)/voltage(V) | 120/20.0（MIG） 120/24.8（MMA） / 120/20.0（MIG） 120/24.8（MMA） |
| Welding current range(A) | 30-120（MIG） 30-120（MMA） / 30-120（MIG） 30-120（MMA） |
| Open circuit voltage DC(V) | 56V / 56V |
| Rated duty cycle(%) | 35% / 35% |
| Wire Feeding Speed(M/min) | 2-15 M/min |
| IP grade | IP21S |
| Insulation grade | F |
| Dimensions(mm) | 410*222*260 mm |
| N.M./G.W.(kg) | 5.0kg / 7.5kg |
| Wire Melting Type | short circuit transfer |
| Welding Process | Flux-Cored / MMA |
| Wirespool Capable | 1 kg |
| Recommend Wire(mm) | 0.8~1.0 mm |
| Thickness of welding material（mm） | Steel/Carbon Steel:0.6~4.0mm Stainless Steel:0.6~4.0mm |
