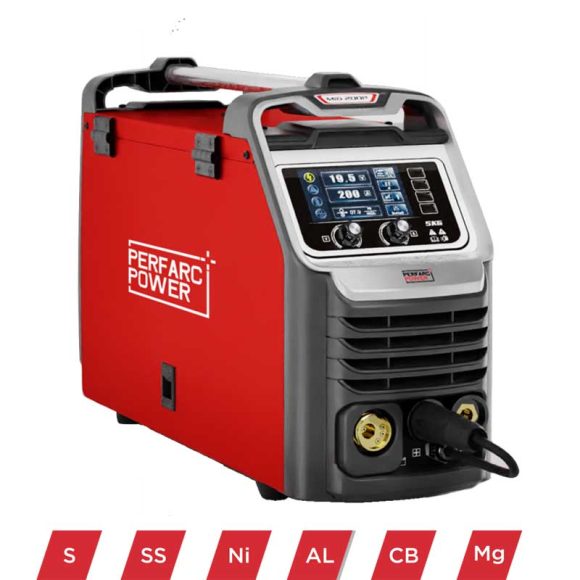

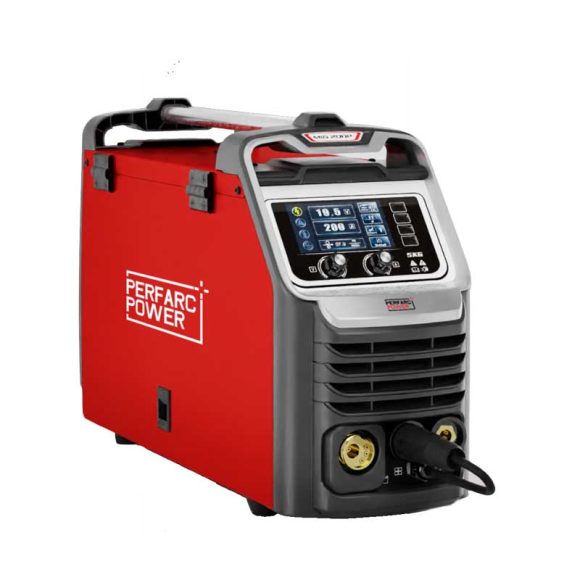

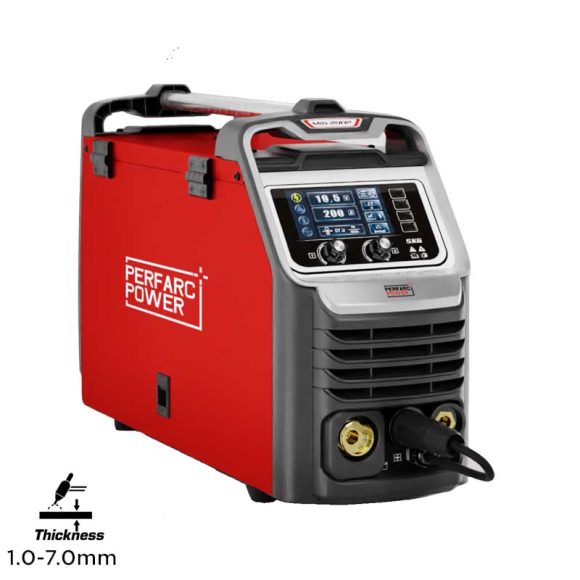

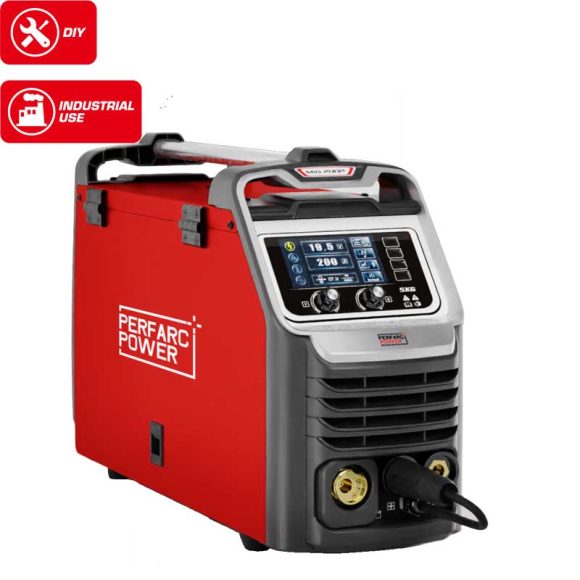

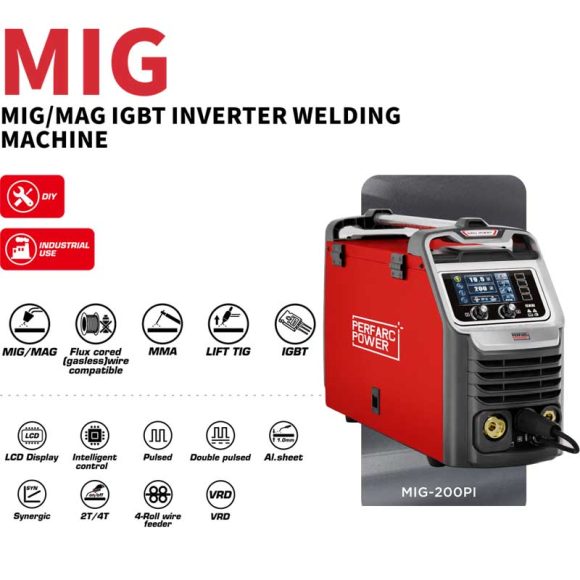

MIG-200PI mig welder is a multi-functional(MIG Welder, Pulsed MIG Welder, Double pulse MIG Welder, Flux-Cored Gasless Welder, TIG Welder, Stick Welder ) electric welding machine with a sleek and elegant appearance with superb production technology. It adopts the most advanced IGBT inverter technology, resulting in excellent arc stability and flawless welding effects. All metals can be welded: stainless steel, carbon steel, low carbon steel, steel, iron, and cast iron.
Availability: In Stock
MIG-200PI mig welder is a multi-functional(MIG Welder, Pulsed MIG Welder, Double pulse MIG Welder, Flux-Cored Gasless Welder, TIG Welder, Stick Welder ) electric welding machine with a sleek and elegant appearance with superb production technology. It adopts the most advanced IGBT inverter technology, resulting in excellent arc stability and flawless welding effects. All metals can be welded: stainless steel, carbon steel, low carbon steel, steel, iron, and cast iron.
1. Multi-function welding – MIG/MAG, Pulsed MIG/MAG, Double pulse MIG/MAG, Flux cored wire welding, MMA, and lift TIG.
2. Intelligent Synergic control makes your work easy.
3. Double pulse function, spatter-free welding, especially suitable for aluminum welding.
4. Capable of both thin and moderately thick metal material welding.
5. High-speed current capability achieves stable arc and high efficiency.
6. Rich selection of aluminum welding process parameters, such as adjustable pre-flow time/post-flow time/pulse frequency.
3m(L) 24KD MIG torch (graphite hose inside)
2.5m(L) cable with ground clamp
2.5m(L) cable with electrode holder
3m(L) steel wire feed spring tube
3m(L) gas hose (hose hoop*2pcs)
| Power input AC(V) | 1ph 220V ±15% |
|---|---|
| Power input frequency(Hz) | 50/60Hz |
| Max. Load Power Capacity(kVA) | 9.5kVA |
| Rated current input(A) | 43.0A |
| Welding current range(A) | 20-200A（MIG，220V） 20-200A（MMA，220V） |
| Open circuit voltage DC(V) | 65V |
| Rated duty cycle(%) | 60% |
| Wire Feeding Speed(M/min) | 2-15 M/min |
| IP grade | IP21S |
| Insulation grade | F |
| Dimensions(mm) | 600*300*460 mm |
| N.M./G.W.(kg) | 12.3kg / 16.5kg |
| Wire Melting Type | short circuit transfer |
| Welding Process | MIG/MAG, Pulsed MIG/MAG, Doublepulse MIG/MAG, Flux cored wire welding,MMA, lift TIG |
| Wirespool Capable | 1kg/5kg |
| Recommend Wire(mm) | 0.8~1.2mm |
| Thickness of welding material（mm） | Steel/Carbon Steel:1.0~8.0mm Stainless Steel:1.0~8.0mm Aluminum:1.0~8.0mm |
