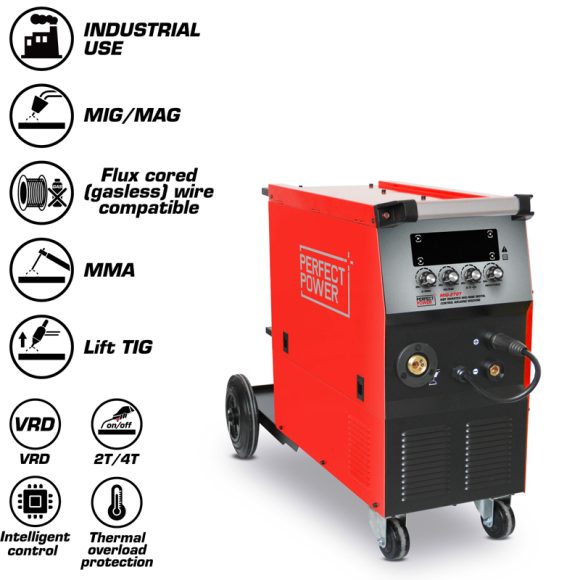

1. Multi-function welding – MIG/MAG, LIFT TIG, MMA, Spool Gun and FLUX CORED Wire welding. 2. Capable for 15kg wire spool. 3. Professional MMA welding process with VRD function. 4. 2T/4T function. 5. Stable arc with less spatter. 6. Ideal for use in outdoor and indoor conditions. 7. Standard equipped with cylinder rack.
Availability: In Stock
1. Multi-function welding – MIG/MAG, LIFT TIG, MMA, Spool Gun and FLUX CORED Wire welding.
2. Capable for 15kg wire spool.
3. Professional MMA welding process with VRD function.
4. 2T/4T function.
5. Stable arc with less spatter.
6. Ideal for use in outdoor and indoor conditions.
7. Standard equipped with cylinder rack.

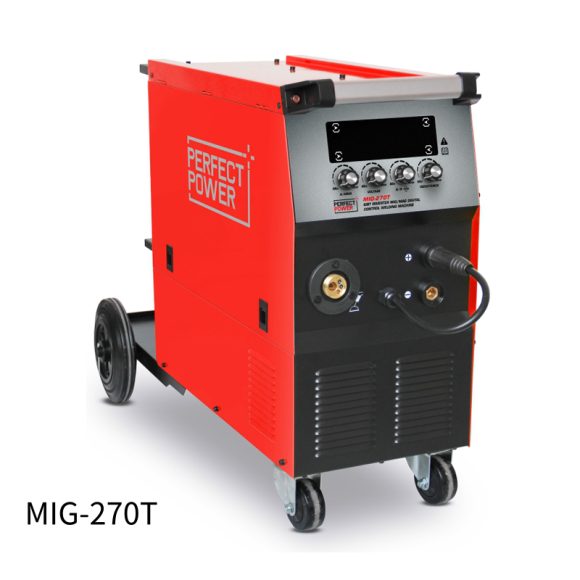

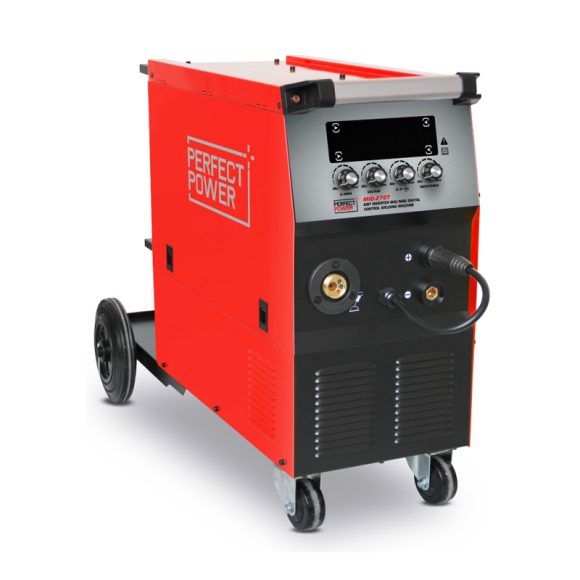

| Model | MIG-270T |
|---|---|
| Power input AC(V) | 3pH 380V ±15% |
| Power input frequency(Hz) | 50/60 |
| Max. Load Power Capacity(kVA) | 13 |
| Rated current input(A) | 19.7 |
| Rated output current(A)/voltage(V) | 270/27.5 |
| Welding current range(A) | 50-270 |
| Open circuit voltage DC(V) | 52 |
| Rated duty cycle(%) | 60 |
| Wire Feeding Speed(M/min) | 2-24 |
| IP grade | IP21S |
| Insulation grade | H |
| Dimensions(mm) | 728*423*718 |
| Weight (KG) | 39.5 |
| Wire Melting Type | short circuit transfer |
