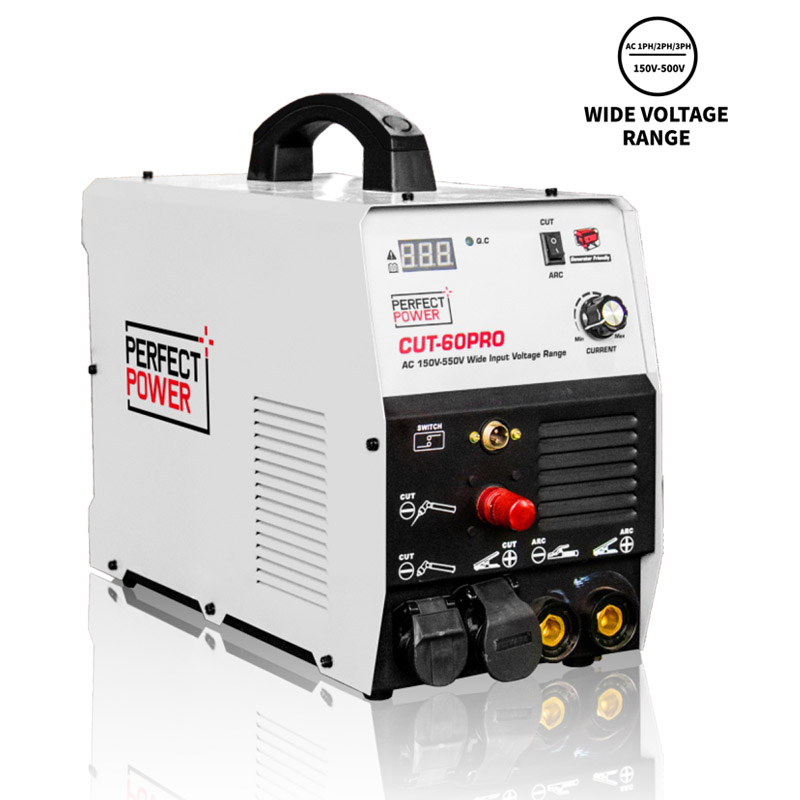

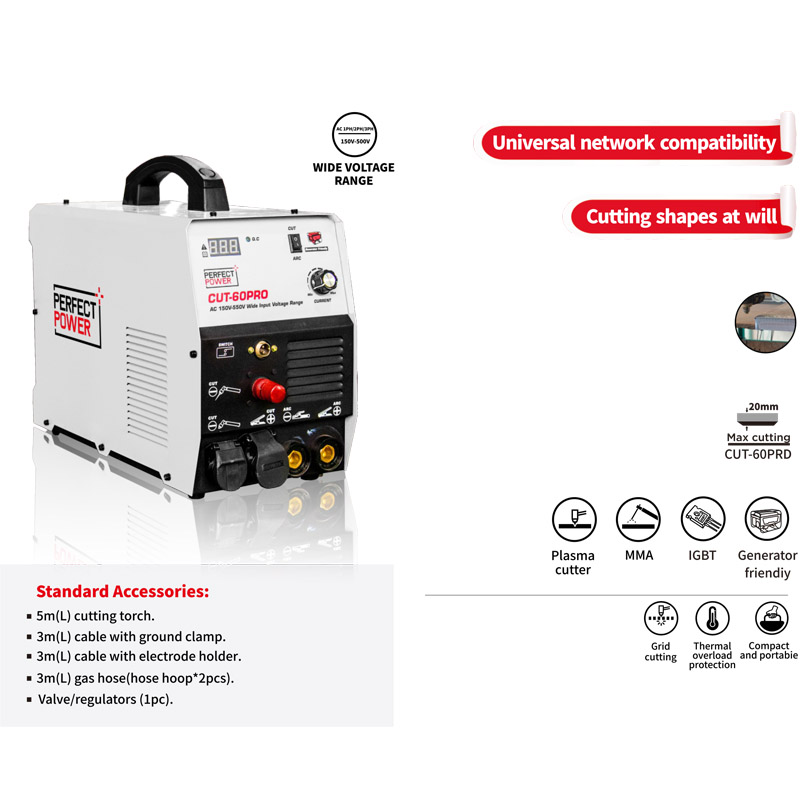

CUT-60PRO Plasma Cutter
60 Amp Non-Touch Pilot Arc Plasma Cutter, 20mm Maximum Cut, 60% Duty Cycle 150-Volt to 550-Volt Wide Voltage
CUT-60PRO plasma cutter is portable enough to carry to any job site. Hook up the compressed air, grab the torch, and start cutting right away. Due to its reliability and portability, this plasma cutting machine is ideal for onsite maintenance, small construction sites, HVAC, and demolition.The normal cutting thickness of the CUT-60PRO plasma cutting machine is 15 mm, and the maximum cutting thickness is 20 mm.
Product Description
CUT-60PRO plasma cutter is portable enough to carry to any job site. Hook up the compressed air, grab the torch, and start cutting right away. Due to its reliability and portability, this plasma cutting machine is ideal for onsite maintenance, small construction sites, HVAC, and demolition.
CUT-60PRO plasma cutting system automatic selection feature detects input voltage automatically, allowing you to easily switch between 150-500V/50-60Hz input powers.
The normal cutting thickness of the CUT-60PRO plasma cutting machine is 15 mm, and the maximum cutting thickness is 20 mm.
Features??
1. IGBT inverter for high efficiency, simple operation, and smooth precise cutting.
2. Small size, lightweight, and long cutting time; easy to move, especially suitable for occasions of high mobility and working at heights.
3. Overheat, overcurrent, and overvoltage protection.
4. Anti-fluctuation of power supply.
5. Accurate cutting current preset ensures good cutting effect, energy-saving performance, and convenient operations, suitable for cutting workpieces of different thicknesses.
6. Adjustable pre-flow checking and post-flow cooling.
7. Narrow cutting seam, clean cutting edge, antideformation.
What’s Included??
3M(L) 3*4mm2+1*2.5mm2 Power Cable
3M(L) 35mm2 cable with 300A ground clamp
3M(L) 35mm2 cable with 300A electrode holder
(Copper-clad aluminum wire??50-70)
5M(L) P80 cutting torch
3M(L) Gas Hose (Hose Hoop*2pcs)
Valve/regulator (1PC)
Additional Information
| Power input AC(V) | 1pH/2pH/3pH 150V-550V |
|---|---|
| Power input frequency(Hz) | 50/60Hz |
| Max. Load Power Capacity(kVA) | 12.2kVA |
| Rated current input(A) | 39.35A |
| ated output current(A)/voltage(V) | 60A/104V |
| Max. cutting current (A) | 60A |
| Open circuit voltage DC(V) | 280V |
| Rated duty cycle(%) | 60% |
| Max.cutting thickness(mm) | 20mm |
| IP grade | IP21 |
| Insulation grade | F |
| Dimensions(mm) | 530*315*430 mm |
| N.M./G.W.(kg) | 13.0kg/15.0kg |
| Quality cutting thickness (mm) | Steel/Carbon Steel:??15 mm Stainless Steel:??15 mm Aluminum:??10 mm Copper/Brass:??5 mm |
| Welding Process | CUT / MMA / HF |
