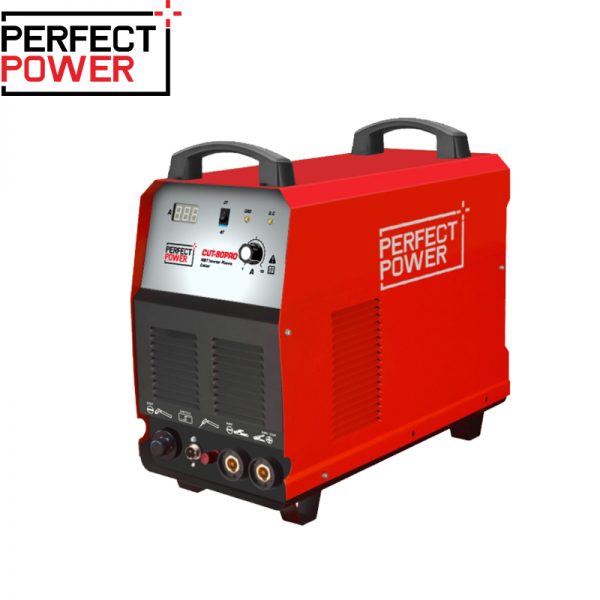

CUT-80PRO IGBT Inverter Plasma Cutting Machine

1. 3ph/220V input power allows even 160A cutting capacity.
2. Able to be connected with CNC equipment to achieve automatic cutting function; the connector is optional.
3. MULTI-FUNCTION two in one, optional MMA function.
4. Powerful cutting capacity, narrow cutting seam, and clean cutting edge.
5. 2T/4T self-locking function.
6. Pilot Arc Starting increases cutting capability and cutting speed, improving the service life of torch kit.
7. Heavy-duty cycle for industrial use.

Model

CUT-80PRO

Power input AC(V)

3ph 220V ±15%

Power input frequency(Hz)

50/60

Max. Load Power Capacity

13.9 kVA

Rated current input(A)

36.45

Rated output current(A)/voltage(V)

80/112

Max. cutting current (A)

80

Open circuit voltage DC(V)

280

Rated duty cycle(%)

60

Max.cutting thickness(mm)

30

IP grade

IP21

Insulation grade

F

Dimensions(mm)

575*333*490

Weight (KG)

16.5
