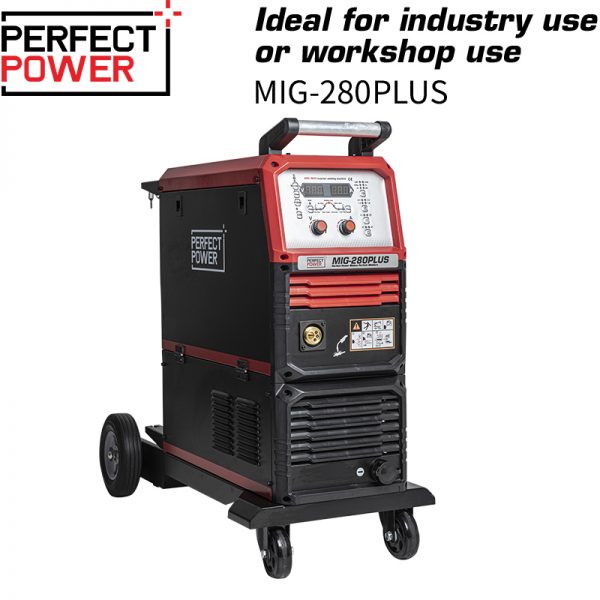

MIG-280PLUS MIG MAG IGBT Inverter Welding Machine

Ideal for industry or workshop use with gas cylinder rack
Double-pulse MIG and Flux-cored welding, the Best welder for thin metal welding, User-friendly, Spool gun optional ready for aluminum, Ideal for industry or workshop use with gas cylinder rack
The MIG-2380is an ideal welding machine for industry or workshop use with a gas cylinder rack. Made to surmount the challenges of welding and MIG brazing high-tensile steel, mild steel, stainless steel, and aluminum. This machine provides a tailored welding experience packed with resource-saving features at every turn.
FEATURES
1. Patented digital control software technology.
2. Synergic function.
3. Welding parameters memoried function.
4. Overloadprotection&loss-phase and lackvoltage protection.
5. Capable of both thin and moderately thick metal material welding.
6. Could work with the industrial robots via communication modules.
7.Welding process MIG/MAG; pulsed MIG/MAG;doublepulseMIG/MAG.
8. High-speed current capability achievesstablearcand high efficiency.

Model

MIG-280PIUS

Power input AC(V)

1ph 220V ±15% 3ph 380V ±15%

Power input frequency(Hz)

50/60

Max. Load Power Capacity(kVA)

9.2

Rated current input(A)

42(380V) 14(220V)

Rated output current(A)/voltage(V)

250/26.5

Welding current range(A)

25-250

Open circuit voltage DC(V)

45

Rated duty cycle(%)

60%

Wire Feeding Speed(M/min)

2-21

IP grade

IP21

Insulation grade

H

Dimensions(mm)

940*460*650

Weight (KG)

globular transfer

Wire Melting Type

short circuit transfer
