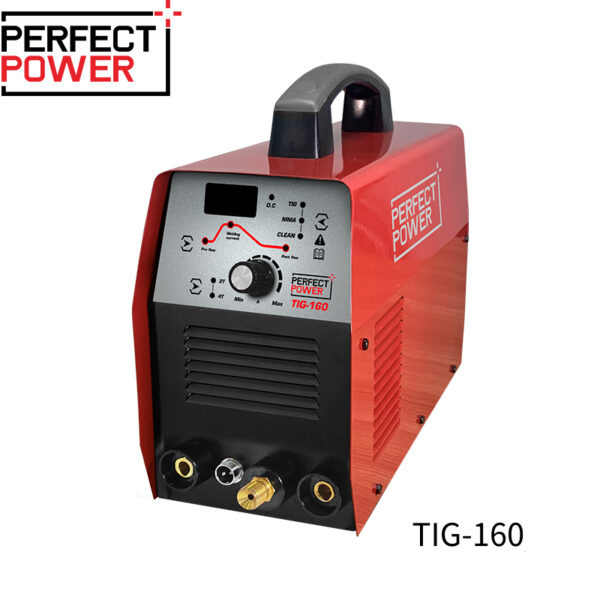

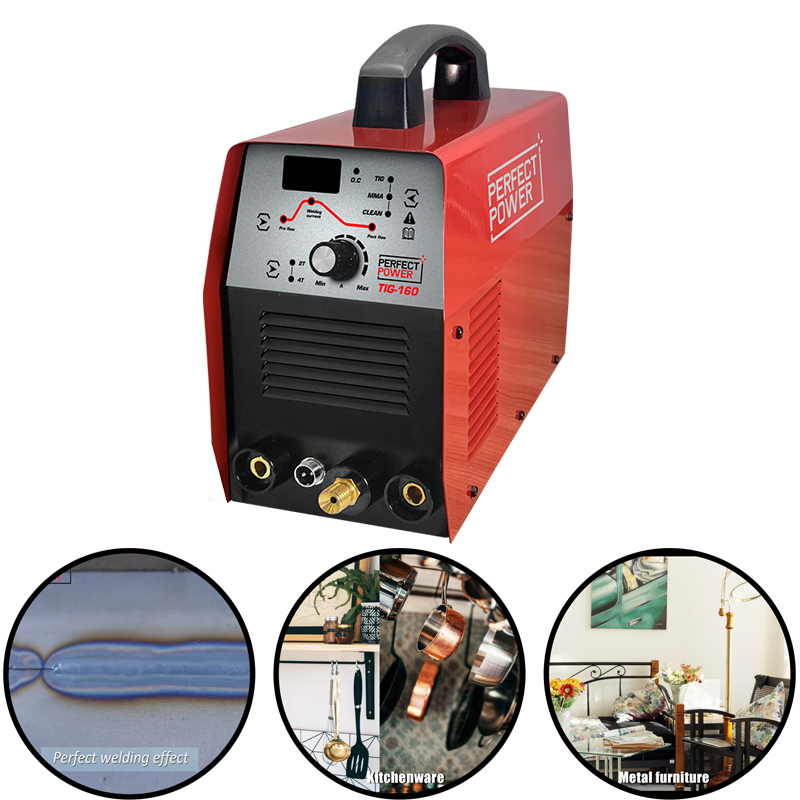

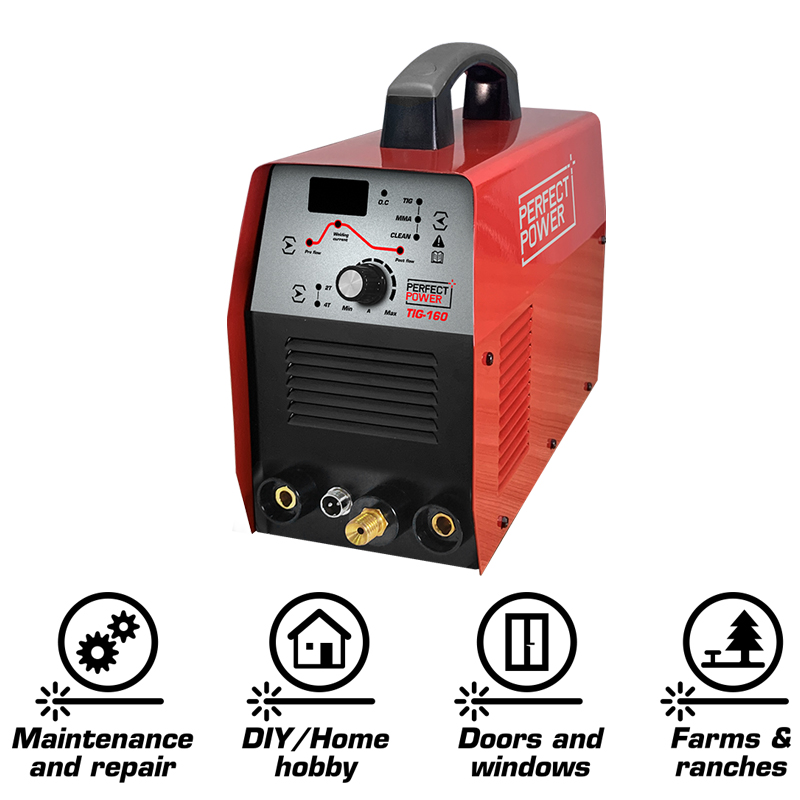

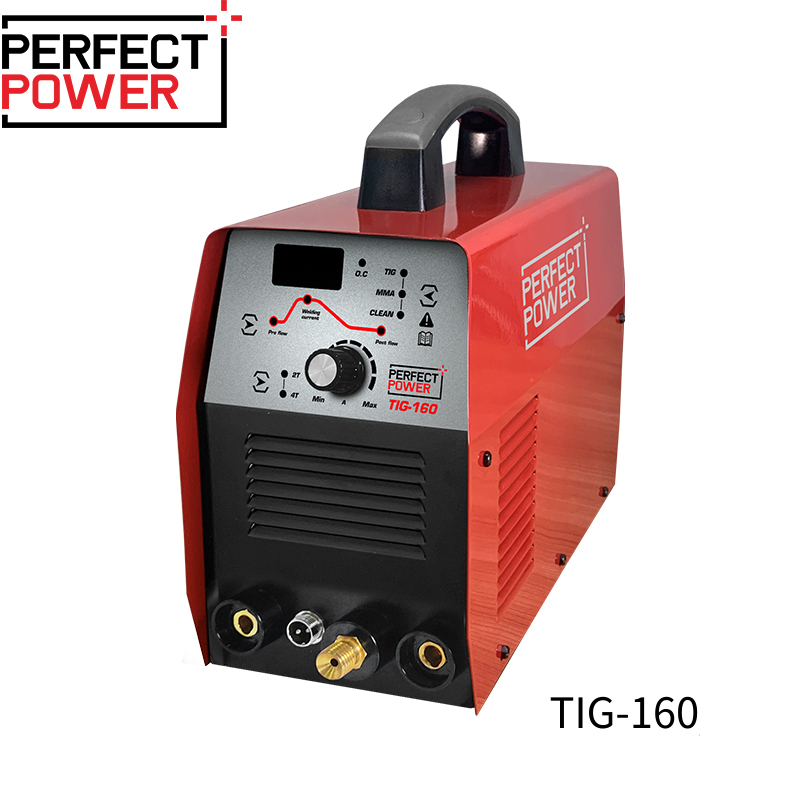

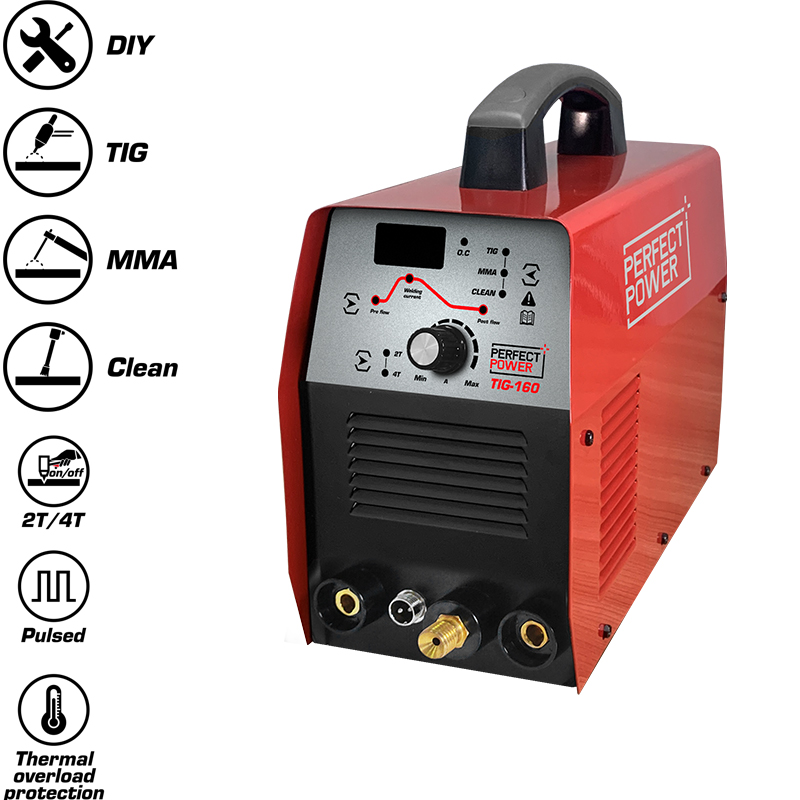

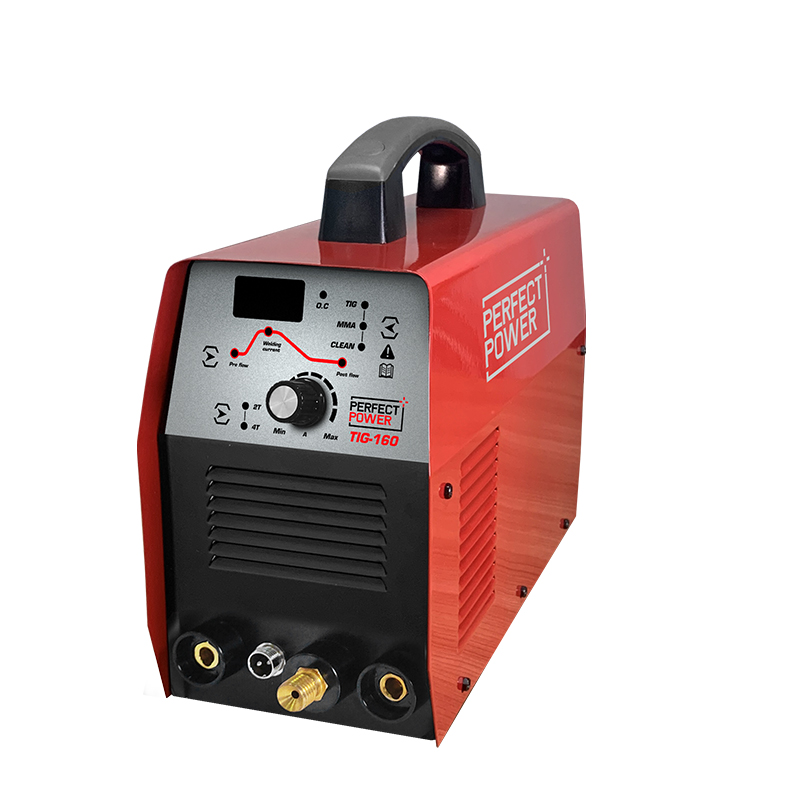

TIG-160 TIG Inverter Welding Machine With Clean Function

1. Multi-function welder: DC TIG, Pulsed TIG, MMA, and Clean function.
2. High-frequency arc start with a high success rate.
3. Clean function, to clean the rust and oil on the surface of the material, like carbon steel and stainless steel.
4. 2T/4T function, adjustable Pre-Flow, and Post-Flow.
5. Exceptional energy-saving performance and high reliability.
6. Pulsed function only for TIG-160P/180P/200P.

Model

TIG160

Power input AC(V)

1ph 220V ±15%

Power input frequency(Hz)

50/60

Max. Load Power Capacity(kVA)

4.5

Rated current input(A)

20.3

Rated output current(A)/voltage(V)

160/16.4(TIG) 140/25.6(MMA)

Welding current range(A)

10-160(TIG) 20-140(MMA)

Open circuit voltage DC(V)

60

Rated duty cycle(%)

60

IP grade

IP21S

Insulation grade

F

Dimensions(mm)

400*155*310

N.W.(kg)

5.2
