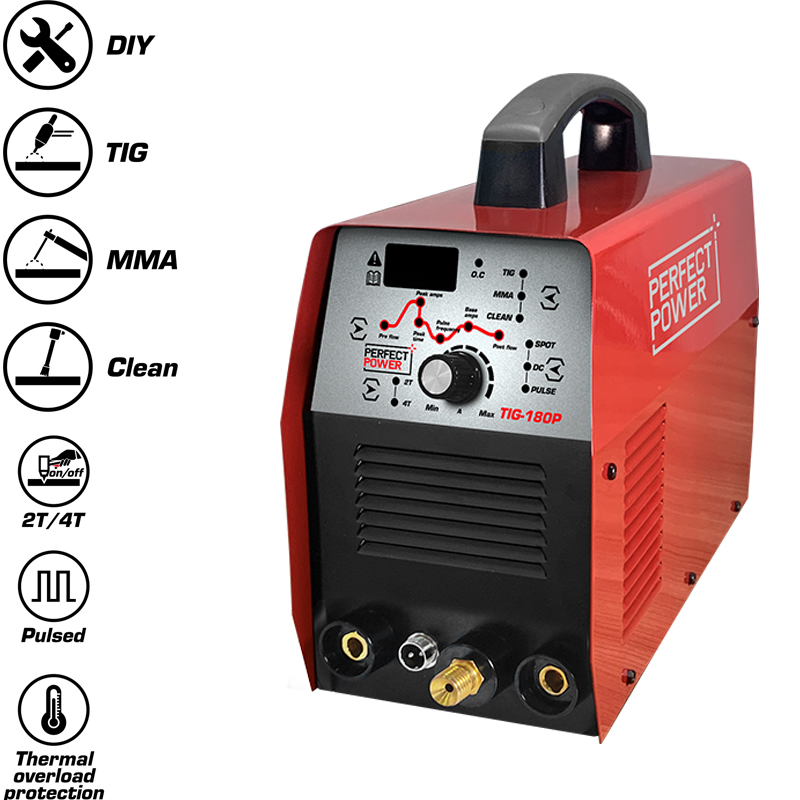

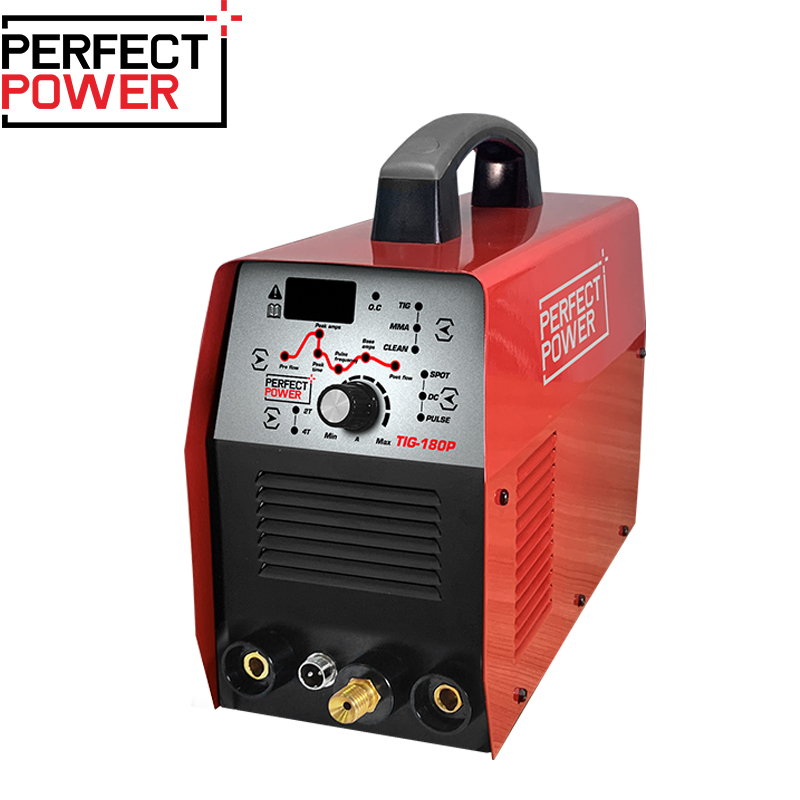

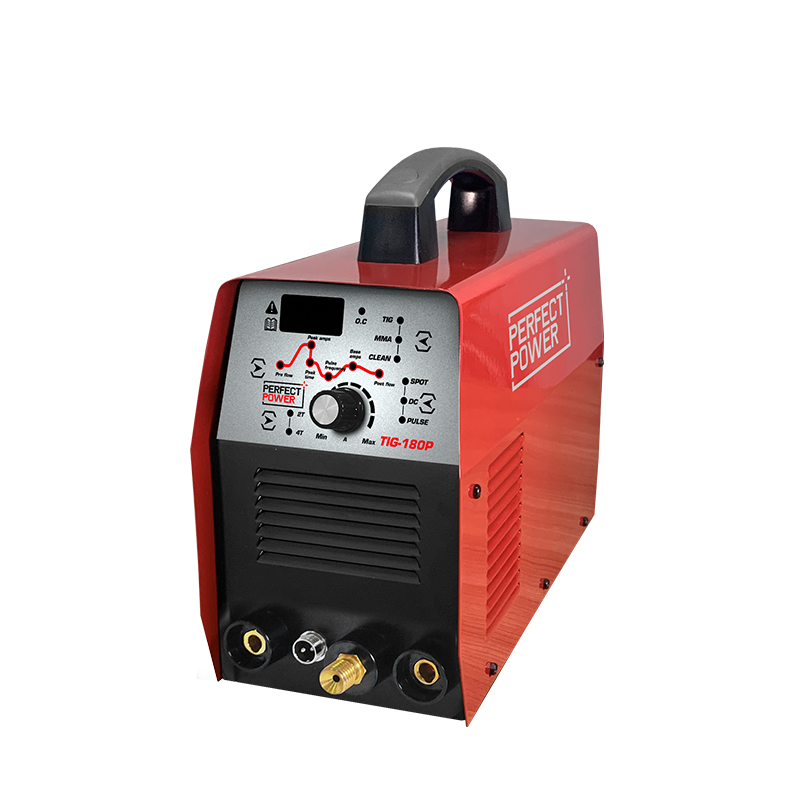

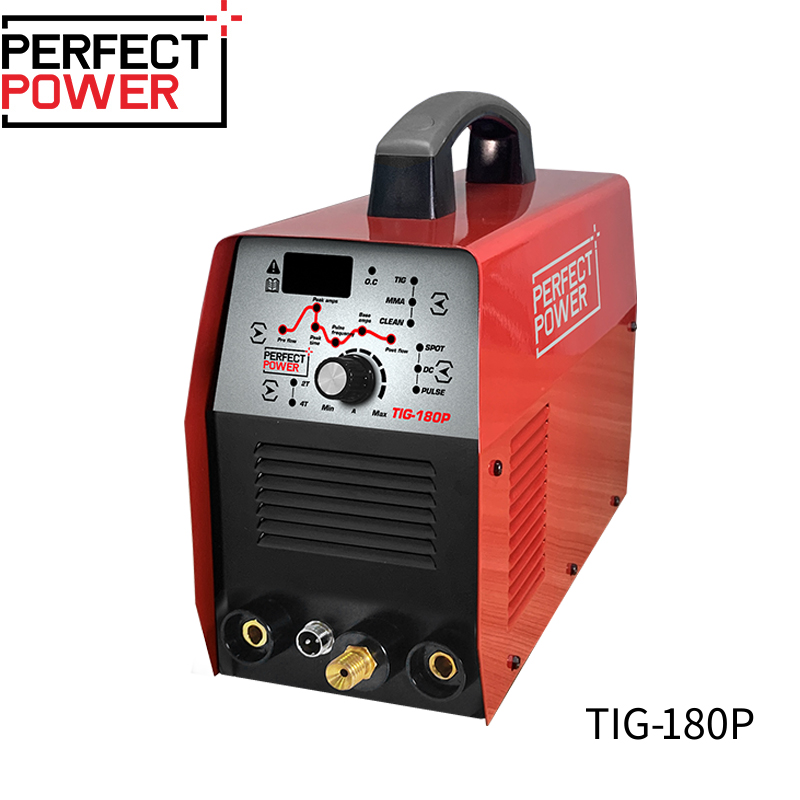

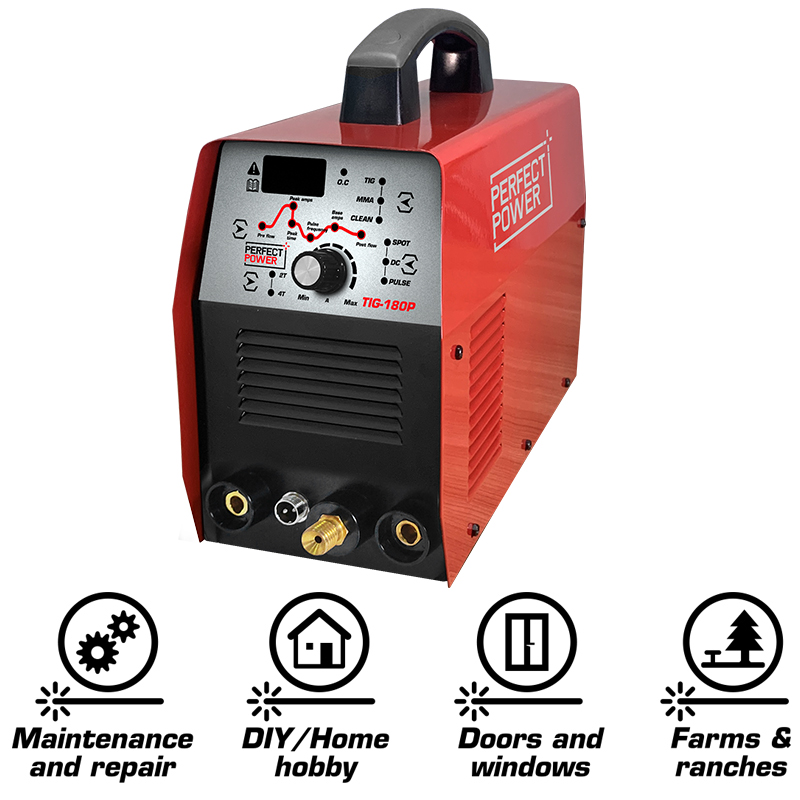

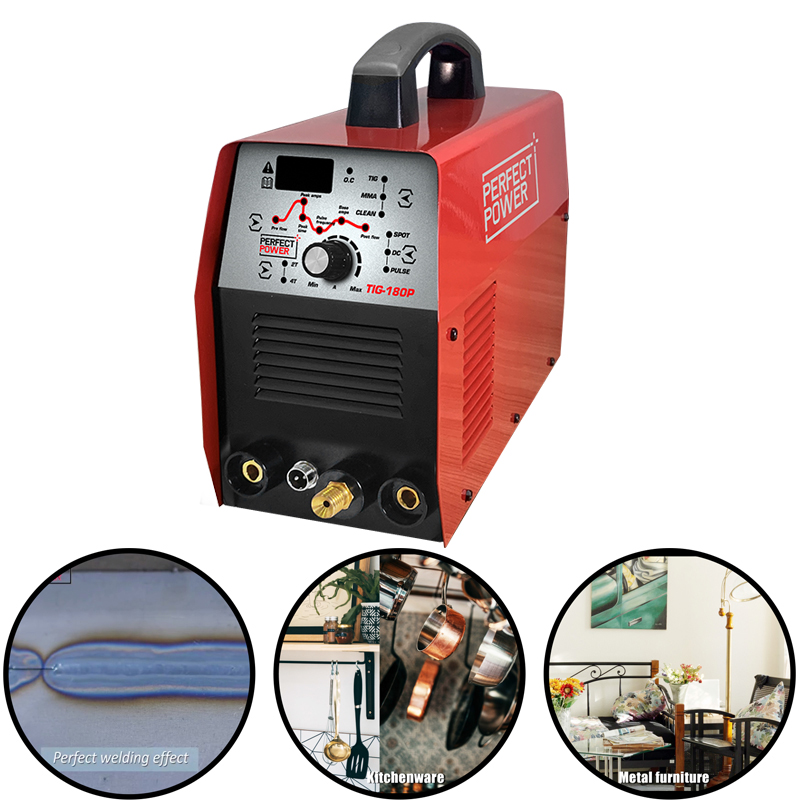

TIG180P TIG Inverter Welding Machine With Clean Function

1. Multi-function welder: DC TIG, Pulsed TIG , MMA and Clean function.
2. High frequency arc start with high success rate.
3. Clean function, to clean the rust and oil on the surface of the material, like carbon steel and stainless steel.
4. 2T/4T function, adjustable Pre-Flow and Post-Flow.
5. Exceptional energy saving performance and high reliability.
6. Pulsed function only for TIG-160P/180P/200P.

Model

TIG180P

Power input AC(V)

1ph 220V ±15%

Power input frequency(Hz)

50/60

Max. Load Power Capacity(kVA)

5.3

Rated current input(A)

24

Rated output current(A)/voltage(V)

180/17.2(TIG) 160/26.4(MMA)

Welding current range(A)

10-180(TIG) 20-160(MMA)

Open circuit voltage DC(V)

60

Rated duty cycle(%)

60

IP grade

IP21S

Insulation grade

F

Dimensions(mm)

400*155*310

N.W.(kg)

5.2
