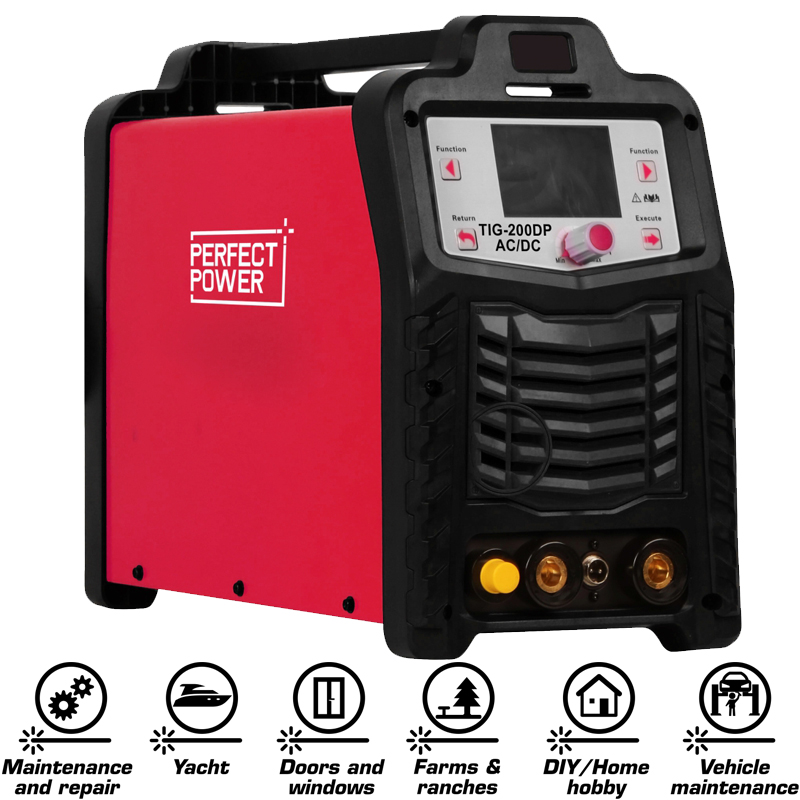

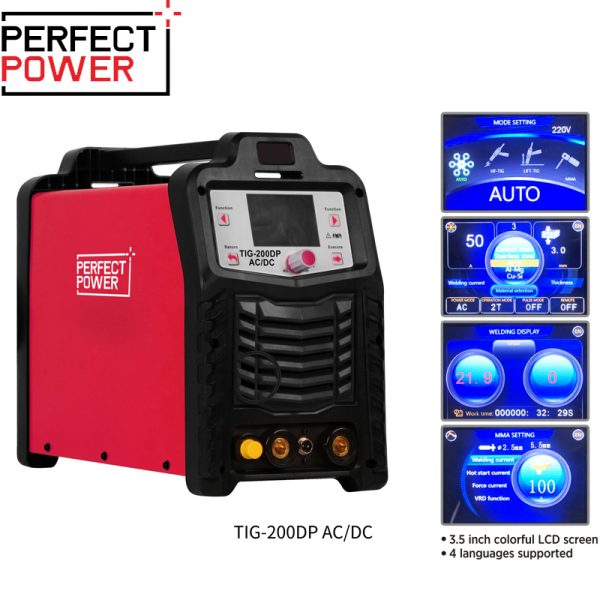

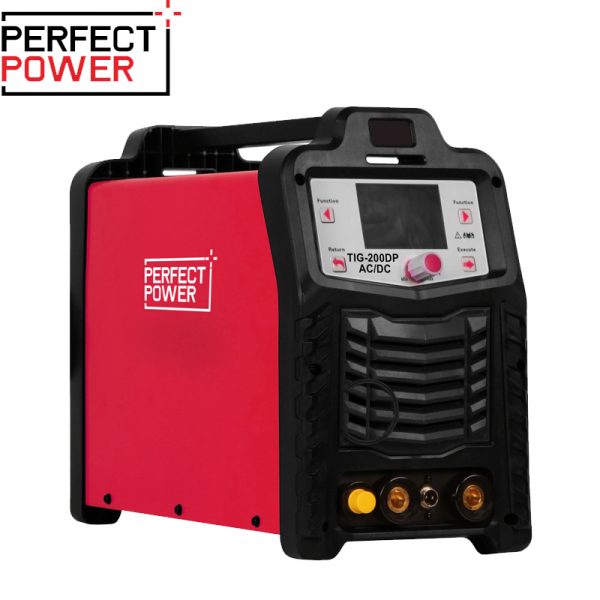

TIG200DP TIG Inverter Welding Machine With LCD
With intelligent LCD visual operation，TIG-200DP AC/DC Tig Welder is a professional TIG welding solution for all types of metal materials like steel, stainless steel, aluminium, copper, titanium, etc.
Product Description
With intelligent LCD visual operation，TIG-200DP AC/DC is a professional TIG welding solution for all types of metal materials like steel, stainless steel, aluminium, copper, titanium, etc.
1. Multi-function welding – AC TIG, AC pulsed TIG, DC TIG, DC pulsed TIG, MMA and Auto welding.
2. Intelligent visual operation instruction make your work easy.
3. Adjustable clean width and clean scope.
4. Optional torch with amperage control&optional foot pedal switch.
5. Digital control technology and one-knob intelligent control panel.
6. Capable for different shapes welding，like butt joint，corner joint，T-joint，lap joint and cruciform joint.
Additional Information
| Model | TIG200DP |
|---|---|
| Power input AC(V) | 1ph 220V ±15% |
| Power input frequency(Hz) | 50/60 |
| Max. Load Power Capacity(kVA) | 6.1 |
| Rated current input(A) | 25.2 |
| Rated output current(A)/voltage(V) | 200/18.0（TIG） 180/28（MMA） |
| Welding current range(A) | 10-200（TIG） 30-200（MMA） |
| Open circuit voltage DC(V) | 62 |
| Rated duty cycle(%) | 40 |
| IP grade | IP21S |
| Insulation grade | F |
| Dimensions(mm) | 460*220*375 |
| N.W.(kg) | 15.1 |
