1. Both TIG & MMA function. 2. 3pcs circuit structure design, robust and reliable performance. 3. 10A min output current is ideal for thin iron and stainless steel welding. 4. Adjustable post-flow function. 5. Overcurrent & heating protection.
Availability: In Stock
1. Both TIG & MMA function.
2. 3pcs circuit structure design, robust and reliable performance.
3. 10A min output current is ideal for thin iron and stainless steel welding.
4. Adjustable post-flow function.
5. Overcurrent & heating protection.

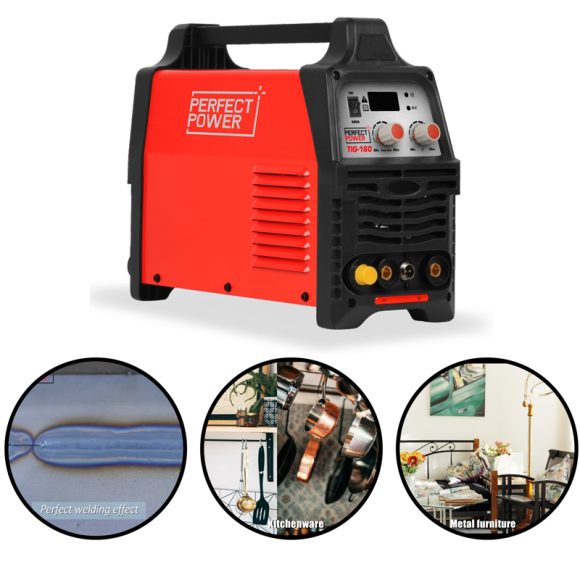

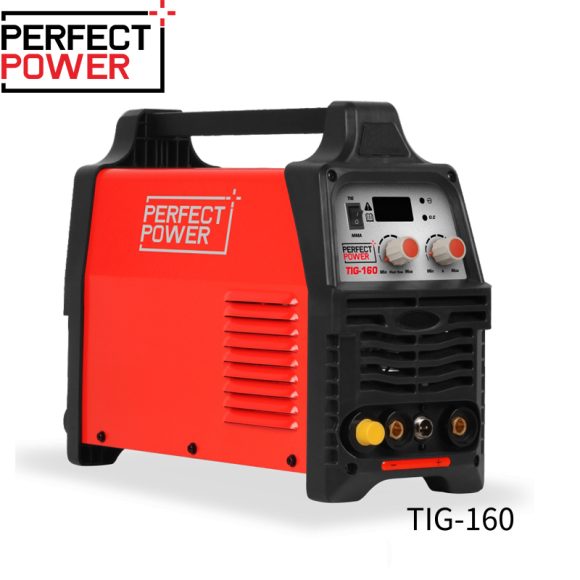

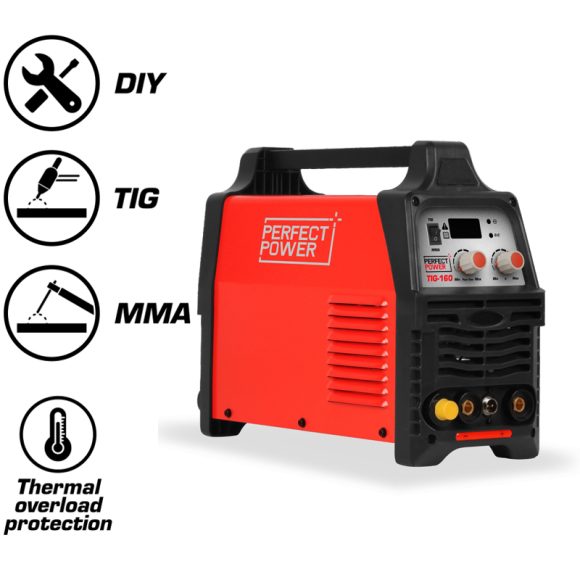

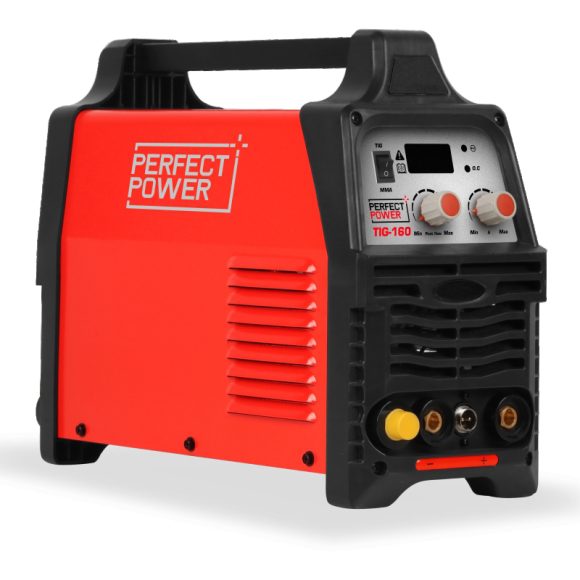

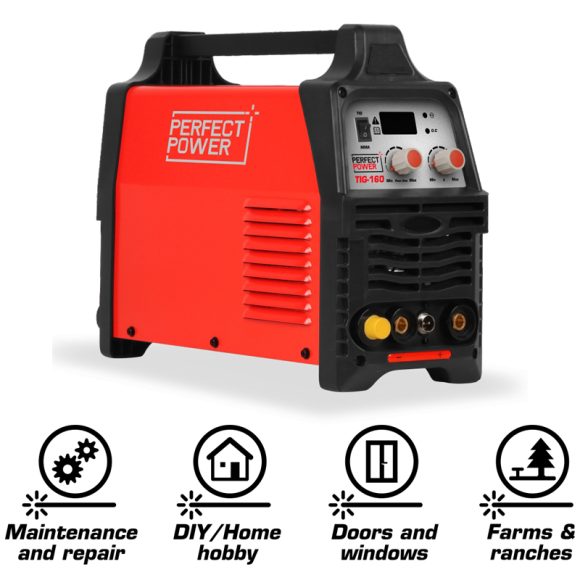

| Model | TIG-160 |
|---|---|
| Power input AC(V) | 1ph 220V ±15% |
| Power input frequency(Hz) | 50/60 |
| Max. Load Power Capacity(kVA) | 4.2 kva tig welder |
| Rated current input(A) | 20.4 |
| Rated output current(A)/voltage(V) | 160/16.4（TIG） 140/25.6（MMA） |
| Welding current range(A) | 10-160（TIG） 10-140（MMA） |
| Open circuit voltage DC(V) | 62 |
| Rated duty cycle(%) | 60 |
| IP grade | IP21S |
| Insulation grade | F |
| Dimensions(mm) | 470*280*370 |
| N.W.(kg) | 7.1/10.4 |
