At Perfect Power Welders, we provide the highest-quality and bestselling discount welding supplies online.
At Perfect Power Welders, we provide the highest-quality and bestselling discount welding supplies online.

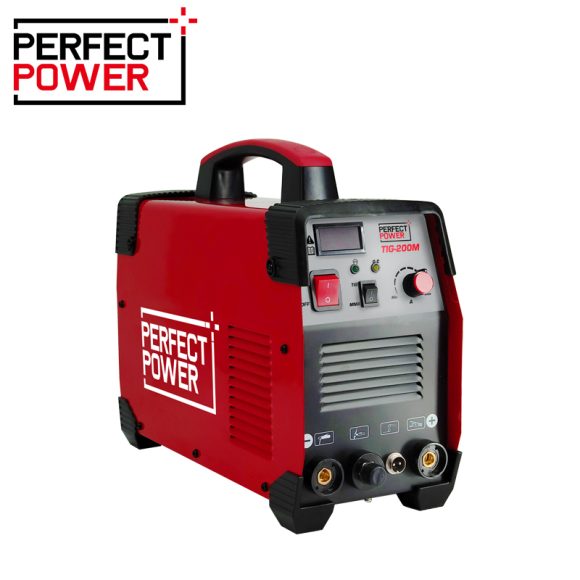

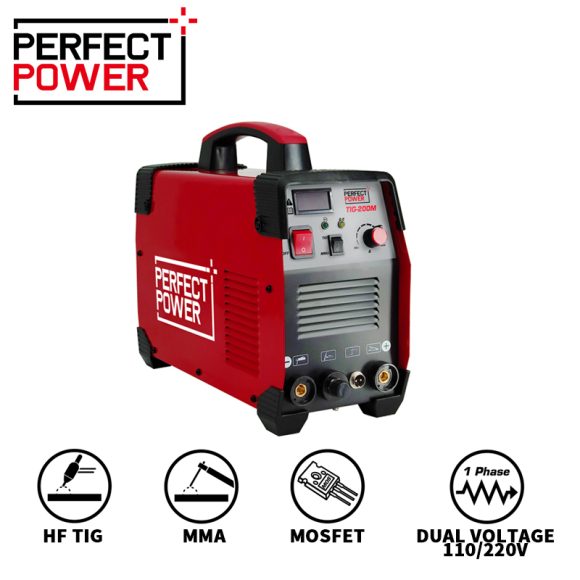

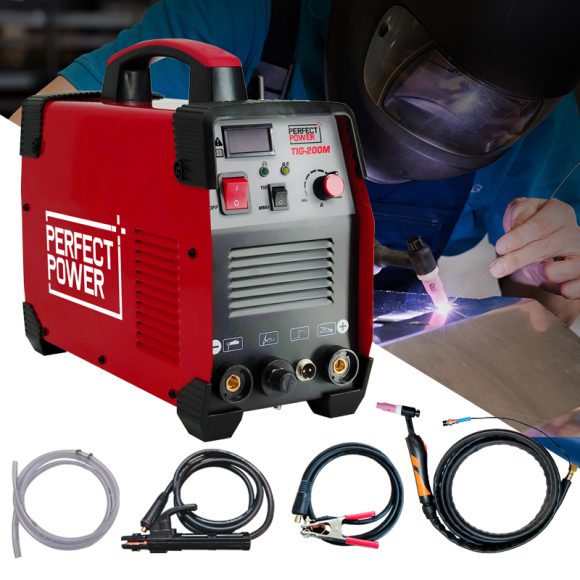

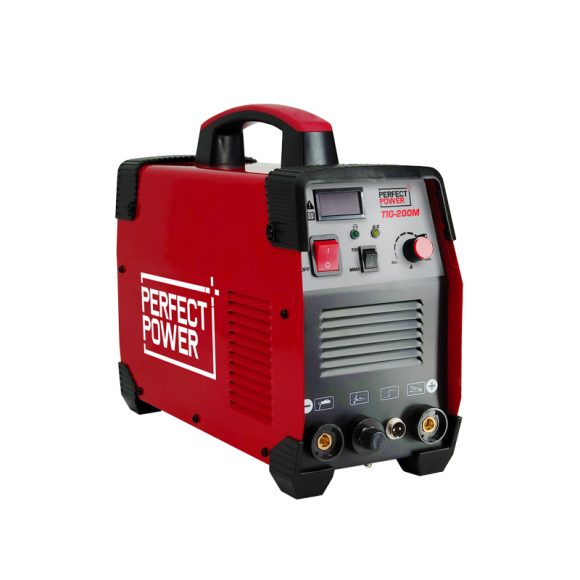

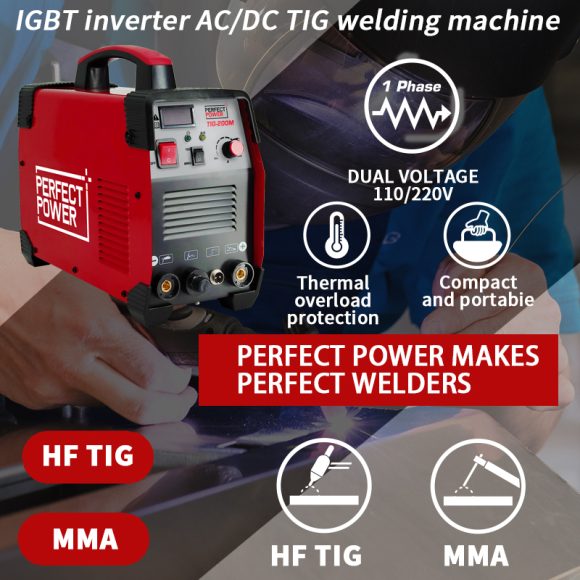

TIG-200M TIG welder is highly potent in its class, able to weld steel, carbon steel, stainless steel, and mild steel, at a 220 Amp output. High-end inverter technology is intended to produce a seamless, faultless weld. TIG-200M Tig welding machine is made with high-quality materials to make it strong and durable to provide best welding performance.
Availability: In Stock
TIG-200M TIG welder is highly potent in its class, able to weld steel, carbon steel, stainless steel, and mild steel, at a 220 Amp output. High-end inverter technology is intended to produce a seamless, faultless weld. TIG-200M Tig welding machine is made with high-quality materials to make it strong and durable to provide best welding performance.
1. Both TIG & MMA function.
2. 3 pcs circuit structure design, robust and reliable performance.
3. 10A min output current is ideal for thin iron and stainless steel welding.
4. Thanks to the high frequency & high voltage arc ignition circuit, it realizes excellent arc starting with a 99.8% success rate, specially suits for different types of spot welding.

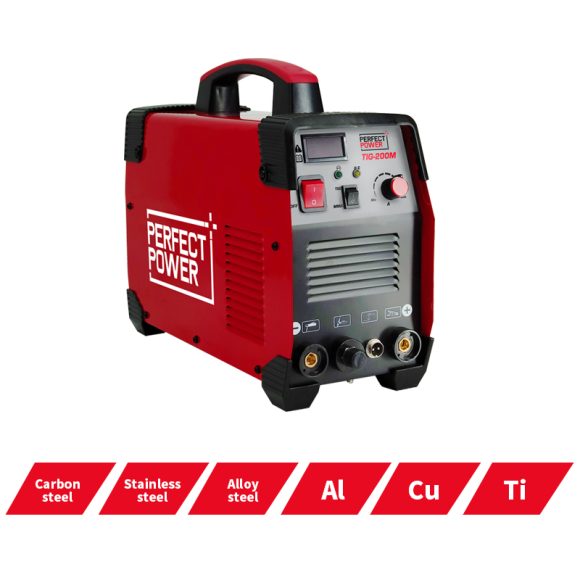

5. Suitable for welding stainless steel, alloy steel, carbon steel, and copper, etc. 6. Over current & heating protection.

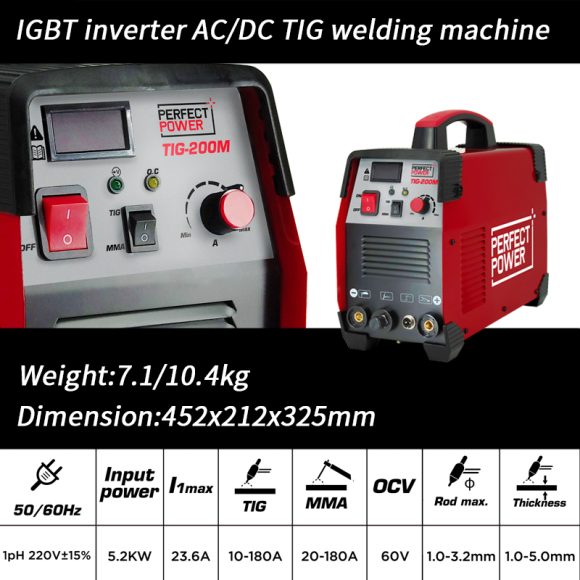

| Model | TIG-200M |
|---|---|
| Power input AC(V) | 1ph 220V ±15% |
| Power input frequency(Hz) | 50/60 |
| Max. Load Power Capacity(kVA) | 5.2 |
| Rated current input(A) | 23.6 |
| Rated output current(A)/voltage(V) | 180A/17.2V（TIG）, 180A/27.2V（MMA） |
| Welding current range(A) | 10-180A |
| Open circuit voltage DC(V) | 60 |
| Rated duty cycle(%) | 35% |
| IP grade | IP21S |
| Insulation grade | F |
| Dimensions(mm) | 452*212*325 |
| N.W.(kg) | / |
