1. Thanks to the advanced inverter technology, the machine is robust with powerful cutting capacity. 2. Able to be connected with CNC equipment to achieve automatic cutting; the connector is optional. 3. Intelligent visual operation instruction make your work easy 4. Powerful cutting capacity, narrow cutting seam and clean cutting edge. 5. 2T/4T self-locking function….
Availability: In Stock
1. Thanks to the advanced inverter technology, the machine is robust with powerful cutting capacity.
2. Able to be connected with CNC equipment to achieve automatic cutting; the connector is optional.
3. Intelligent visual operation instruction make your work easy
4. Powerful cutting capacity, narrow cutting seam and clean cutting edge.
5. 2T/4T self-locking function.
6. Pilot arc starting increases cutting capability and cutting speed, improving service life of torch kit.
7. Operation safety protection against over-voltage, low-voltage, over-current and over-heated.
8. Heavy duty cycle for industrial use.
| Model | CUT-80D |
|---|---|
| Power input AC(V) | 3pH 380V ±15% |
| Power input frequency(Hz) | 50/60 |
| Max. Load Power Capacity | 12.5 |
| Rated current input(A) | 18.9 |
| Rated output current(A)/voltage(V) | 80/112 |
| Max. cutting current (A) | 80 |
| Open circuit voltage DC(V) | 290 |
| Rated duty cycle(%) | 60 |

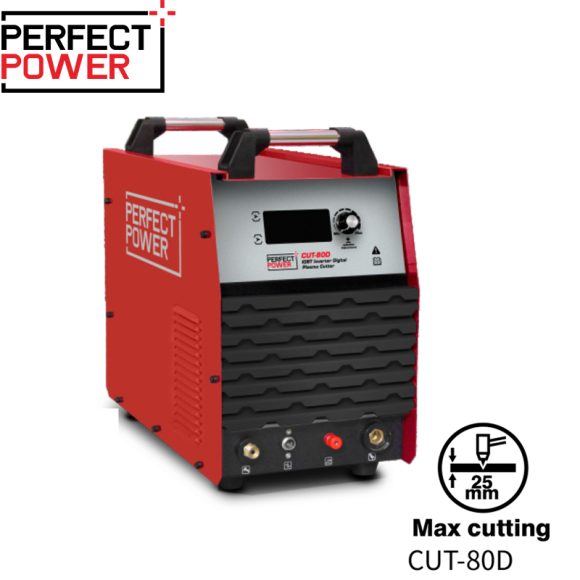

| Max.cutting thickness(mm) | 25 |
| IP grade | IP21 |
| Insulation grade | F |
| Dimensions(mm) | 580×335×510 |
| Weight (KG) | 22 |
