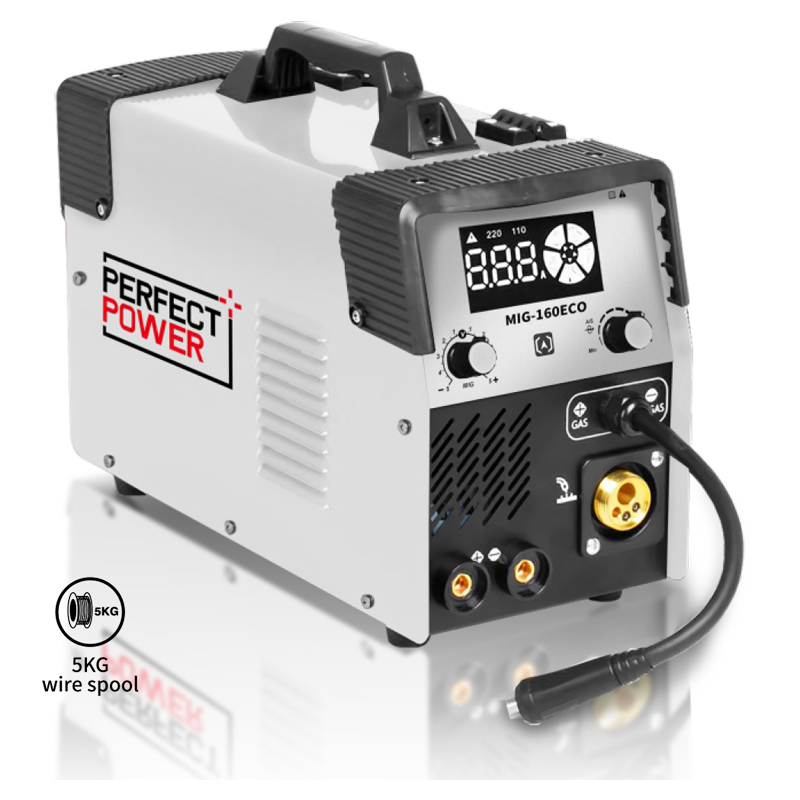

MIG-160ECO MIG Welder /Flux-Cored/TIG/Stick Multi-Process Welder
160 Amp MIG Welder, Flux-Cored Gasless Welder, TIG Welder, Stick Welder, 110-Volt and 200-Volt IGBT Inverter Welding, 30% Duty Cycle
MIG-160ECO mig welder is a multi-functional(MIG Welder, Flux-Cored Gasless Welder, TIG Welder, Stick Welder ) electric welding machine with a sleek and elegant appearance with superb production technology. It adopts the most advanced IGBT inverter technology, resulting in excellent arc stability and flawless welding effects. All metals can be welded: stainless steel, carbon steel, low carbon steel, steel, iron, and cast iron.
Product Description
MIG-160ECO mig welder is a multi-functional(MIG Welder, Flux-Cored Gasless Welder, TIG Welder, Stick Welder ) electric welding machine with a sleek and elegant appearance with superb production technology. It adopts the most advanced IGBT inverter technology, resulting in excellent arc stability and flawless welding effects. All metals can be welded: stainless steel, carbon steel, low carbon steel, steel, iron, and cast iron.
Features??
1. Multi-process welder for MIG/MAG, gasless flux cored wire welding, MMA, and lift TIG.
2. Full digital control system, welding parameters can be adjusted independently; Stable arc output, superior welding quality.
3. Effective spatter control, improved penetration, and better welding effect.
4. 1KG/5KG wire spool capable.
5. Equipped with a trimmer potentiometer on the control panel, it is more convenient for the voltage compensation of welding to make the welding effect more perfect.
6. ideal for use in outdoor and indoor conditions.
7. Operation safety protection against over-voltage low-voltage, over-current and over-heated.
What’s Included??
3m(L) 15AK MIG torch
2m(L) cable with 300A ground clamp
2m(L) cable with 200A electrode holder
2m(L) gas hose (hose hoop*2pcs)
Additional Information
| Power input AC(V) | 1ph 110V/220V ??15% |
|---|---|
| Power input frequency(Hz) | 50/60Hz |
| Max. Load Power Capacity(kVA) | 4.1kVA |
| Rated current input(A) | 37.2A |
| Rated output current(A)/voltage(V) | 160/22.0??MIG??220V?? 140/25.6??MMA??220V??/ 140/21.0??MIG??110V?? 120/24.8??MMA??110V?? |
| Welding current range(A) | 30-160??MIG??220V?? 30-140??MMA??220V??/ 30-140??MIG??110V??30-120??MMA??110V?? |
| Open circuit voltage DC(V) | 56V / 56V |
| Rated duty cycle(%) | 30% |
| Wire Feeding Speed(M/min) | 2-15 M/min |
| IP grade | IP21S |
| Insulation grade | F |
| Dimensions(mm) | 520*300*370 mm |
| N.M./G.W.(kg) | 7.3kg / 10.5kg |
| Wire Melting Type | short circuit transfer |
| Welding Process | MIG / Flux-Cored / TIG / Stick |
| Wirespool Capable | 1kg/5kg |
| Recommend Wire(mm) | 0.8~1.0 mm |
| Thickness of welding material??mm?? | Steel/Carbon Steel:0.6~4.0mm Stainless Steel:0.6~4.0mm |
