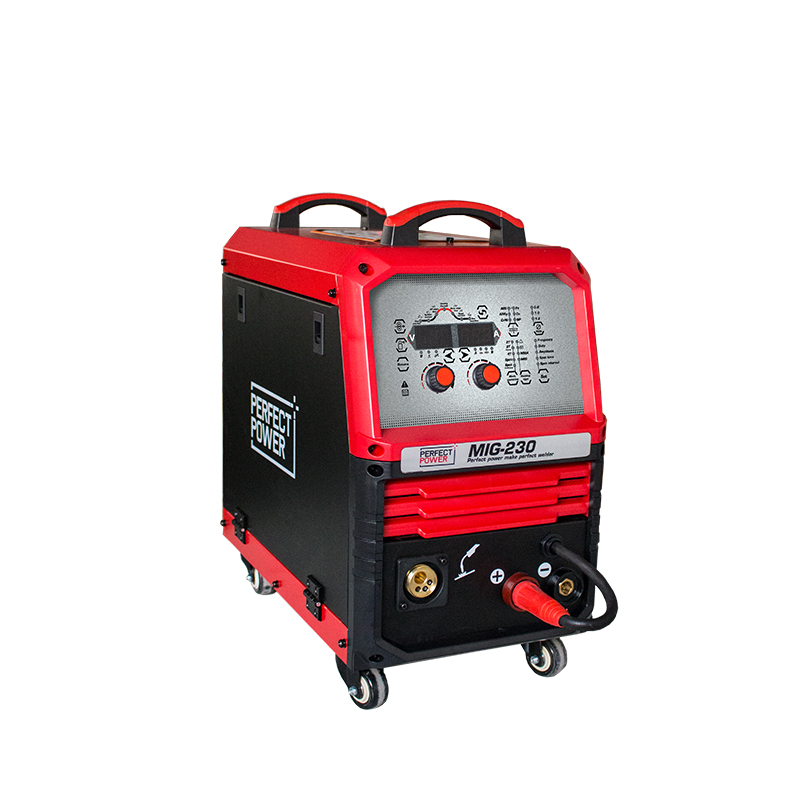

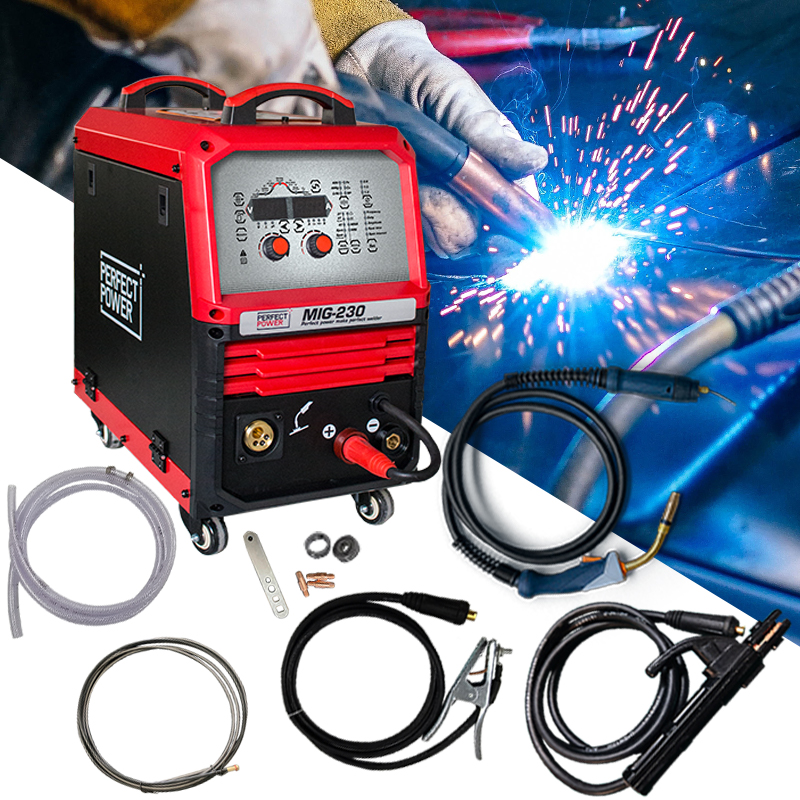

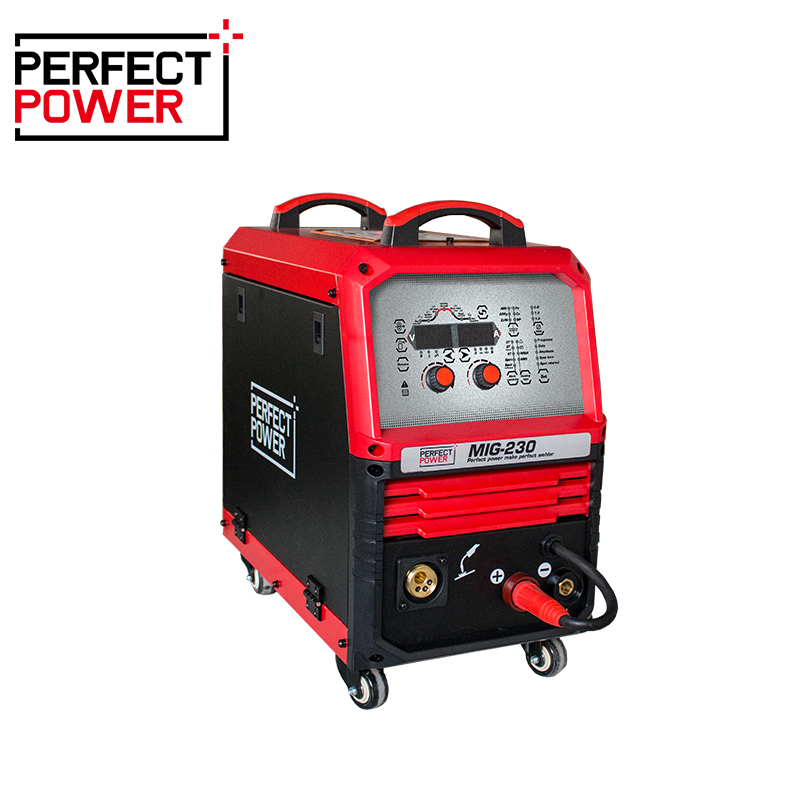

MIG-230 MIG Welder
MIG-230 MIG welder is a dual-voltage MIG welders combine the versatility of welding with a 220V input with the high power output available from a 380V outlet all in one machine. MIG-230 5-in-1 Multi-Process MIG Welding Machine, specially designed for MIG/MAG, LIFT TIG, MMA, and FLUX CORED Wire welding, and renowned for its expertise in handling thin metal materials.
Product Description
MIG-230 MIG welder is a dual-voltage MIG welders combine the versatility of welding with a 220V input with the high power output available from a 380V outlet all in one machine. MIG-230 5-in-1 Multi-Process MIG Welding Machine, specially designed for MIG/MAG, LIFT TIG, MMA, and FLUX CORED Wire welding, and renowned for its expertise in handling thin metal materials.
➠【 Master of Welding Thin Metal 】 Unlock the art of welding thin metal materials with the MIG-230. Its specialized capabilities ensure impeccable welds even on the most delicate surfaces.
➠【 Patented Digital Control Software Technology 】 Experience unparalleled control with our patented digital control software technology. Achieve precise welding results with ease, thanks to its cutting-edge features.
➠【 Synergic Function for Ultimate Performance 】 Take your welding to the next level with the synergic function. Seamlessly achieve optimal welding parameters for impeccable results every time.
➠【 High-Frequency Inverter: IGBT 35 kHz 】 Experience unmatched welding stability with the high-frequency inverter technology. The IGBT 35 kHz frequency ensures a stable and consistent welding performance.
➠【 Welding Parameters Memorized Function 】Customize your welding experience with ease, as the MIG-230 memorizes your preferred welding parameters. Enjoy streamlined workflows and efficient results.
➠【 Overload and Voltage Protection for Peace of Mind 】 Your safety is paramount. The MIG-230 is equipped with overload and voltage protection, ensuring worry-free welding operations.
➠【 Compatible with Industrial Robots 】 Experience cutting-edge welding capabilities with the ability to work alongside industrial robots via communication modules. Elevate your welding efficiency like never before.

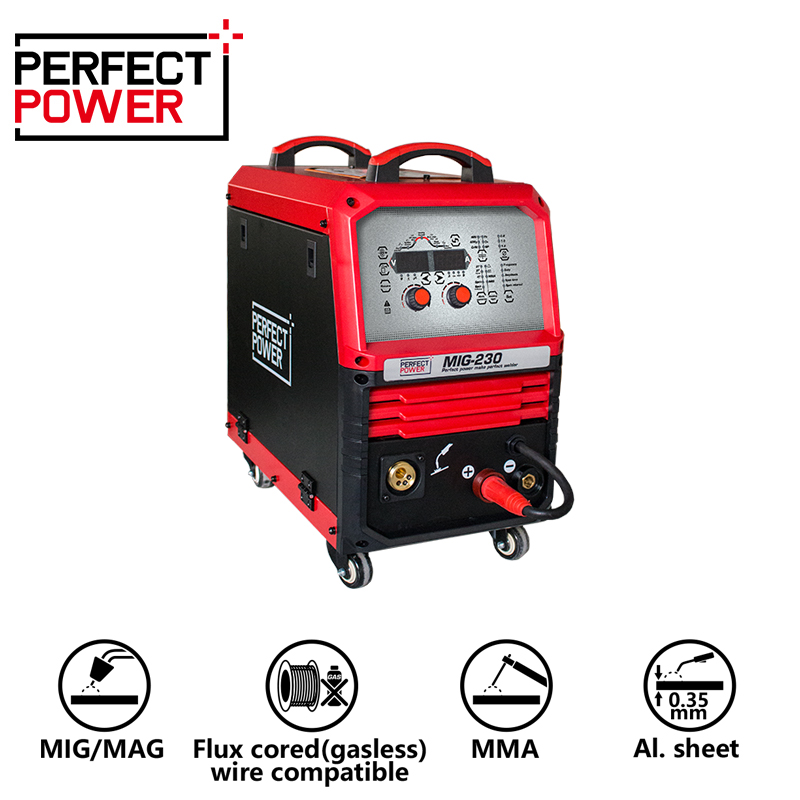

➠【 Versatile Welding Processes 】 From MIG/MAG to pulsed MIG/MAG and double pulse MIG/MAG, the MIG-230 offers versatile welding processes to suit a wide range of welding applications.
Additional Information
| Model | MIG-230 |
|---|---|
| Power input AC(V) | 1ph 220V ±15%, 3ph 380V ±15% |
| Power input frequency(Hz) | 50/60 |
| Max. Load Power Capacity(kVA) | 6.4 |
| Rated current input(A) | 29(380V), 9.4(220V) |
| Rated output current(A)/voltage(V) | 220A/25V |
| Welding current range(A) | 10-220 A |
| Open circuit voltage DC(V) | 65 |
| Rated duty cycle(%) | 60% |
| Wire Feeding Speed(M/min) | 2-18 |
| IP grade | IP21 |
| Insulation grade | F |
| N.M./G.W.(KG) | 29/31 |
| Wire Melting Type | globular transfer |
