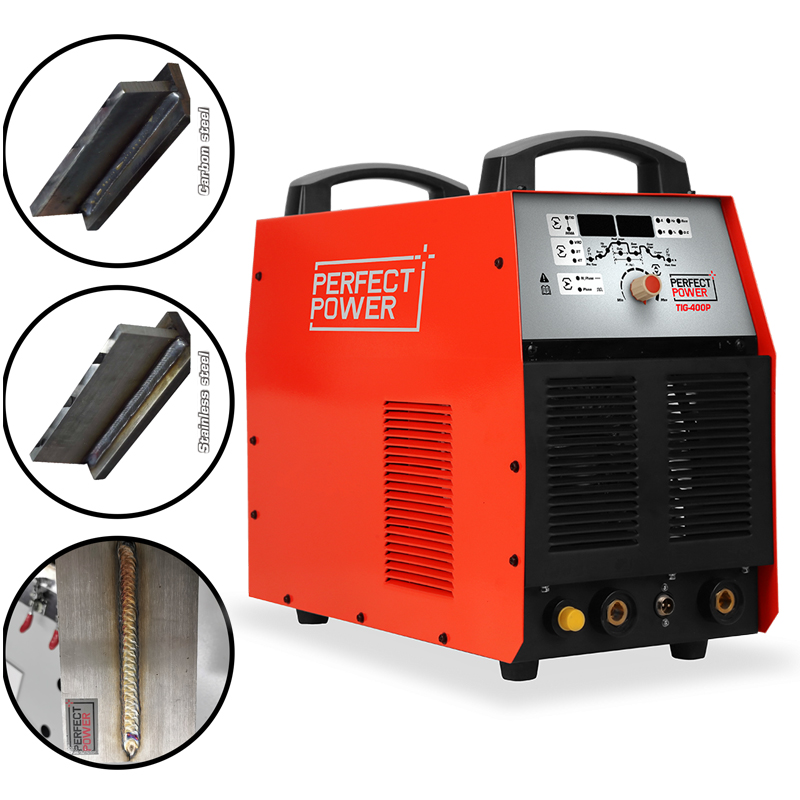

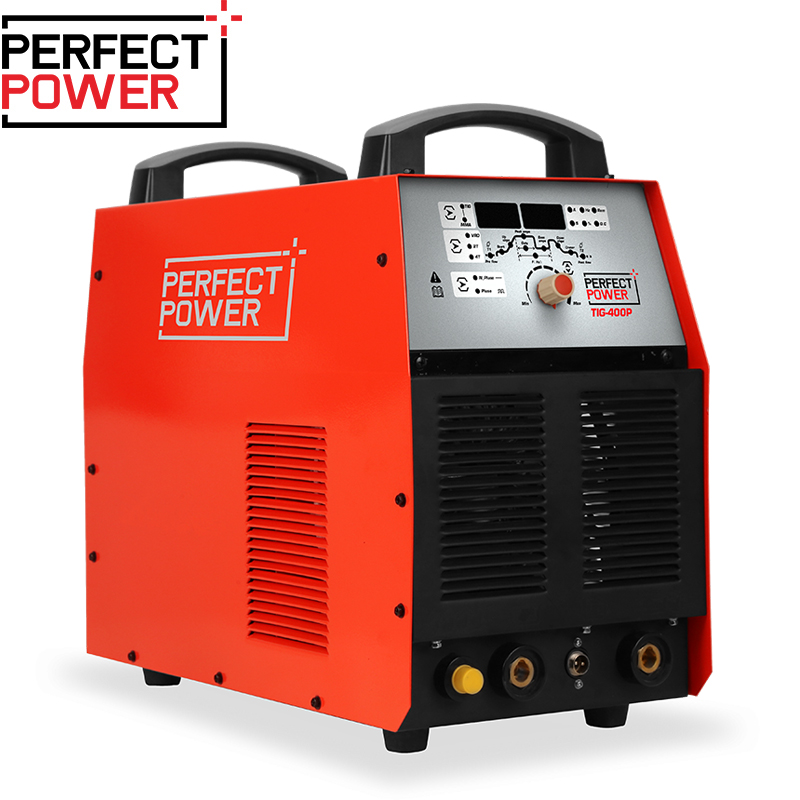

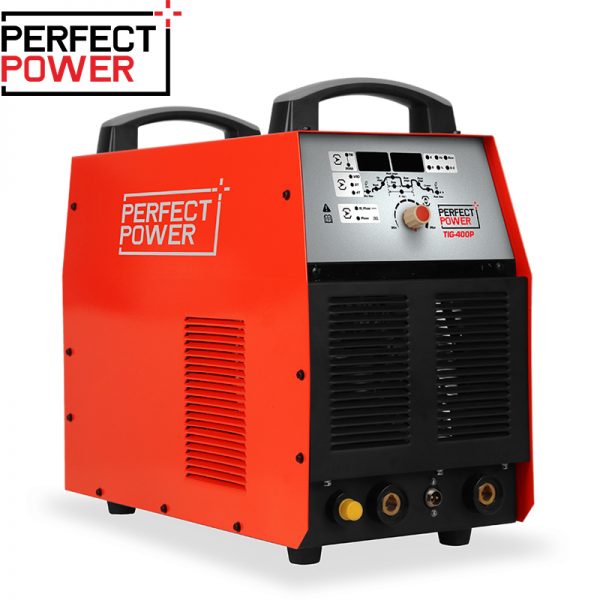

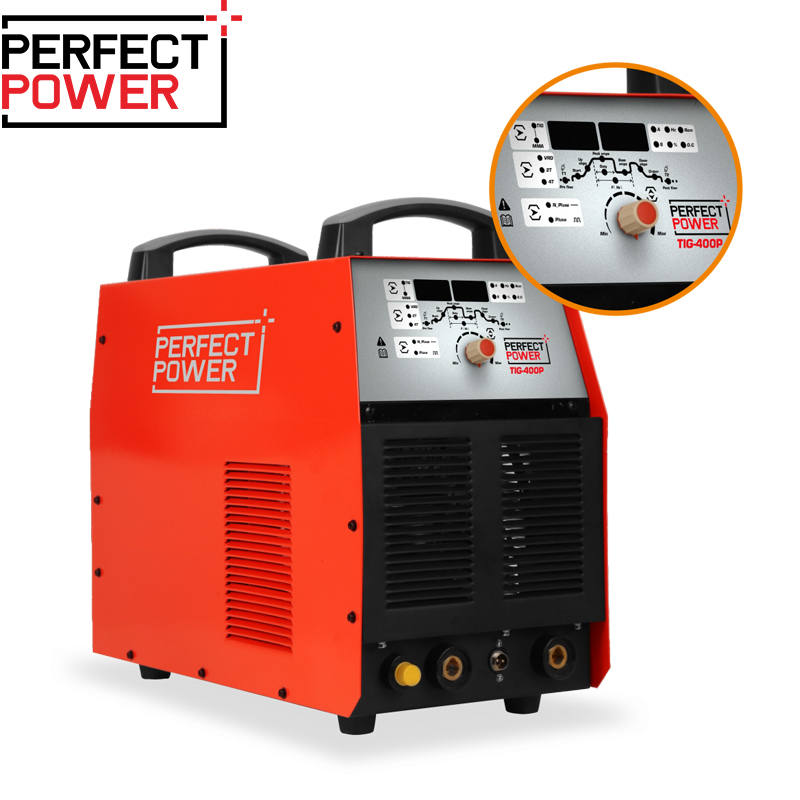

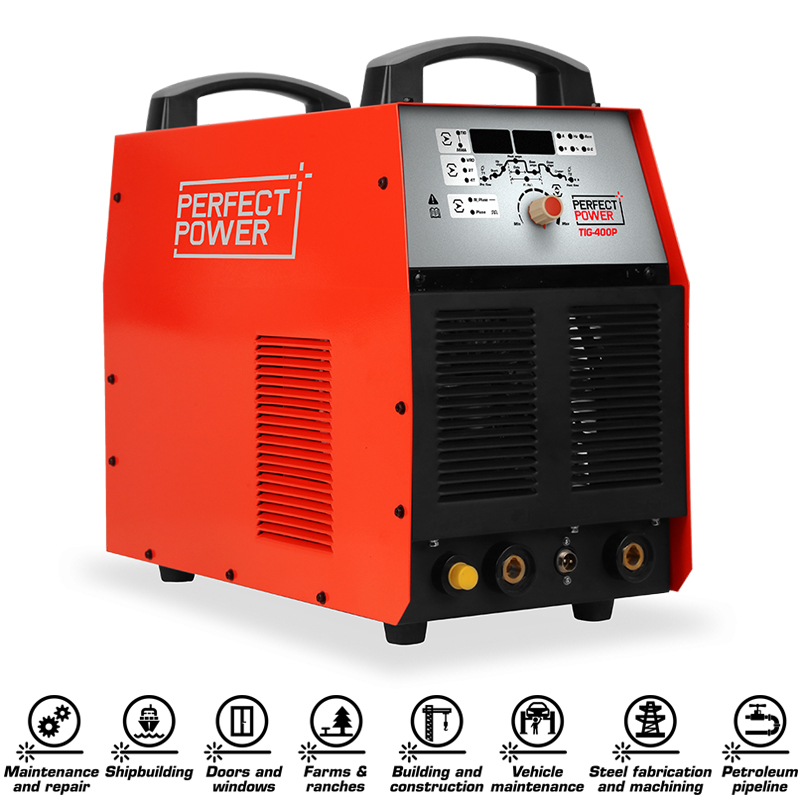

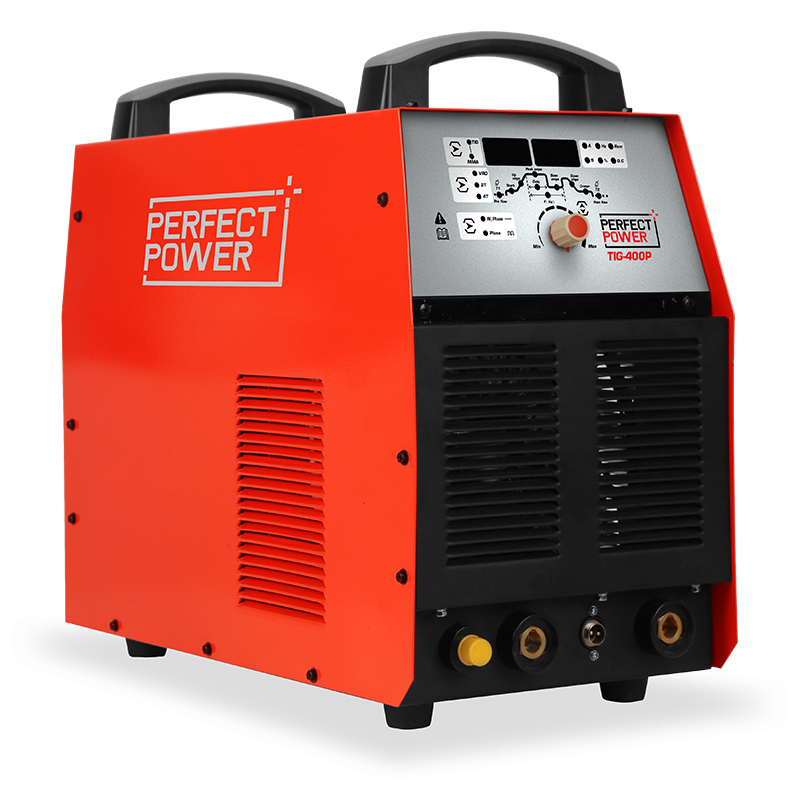

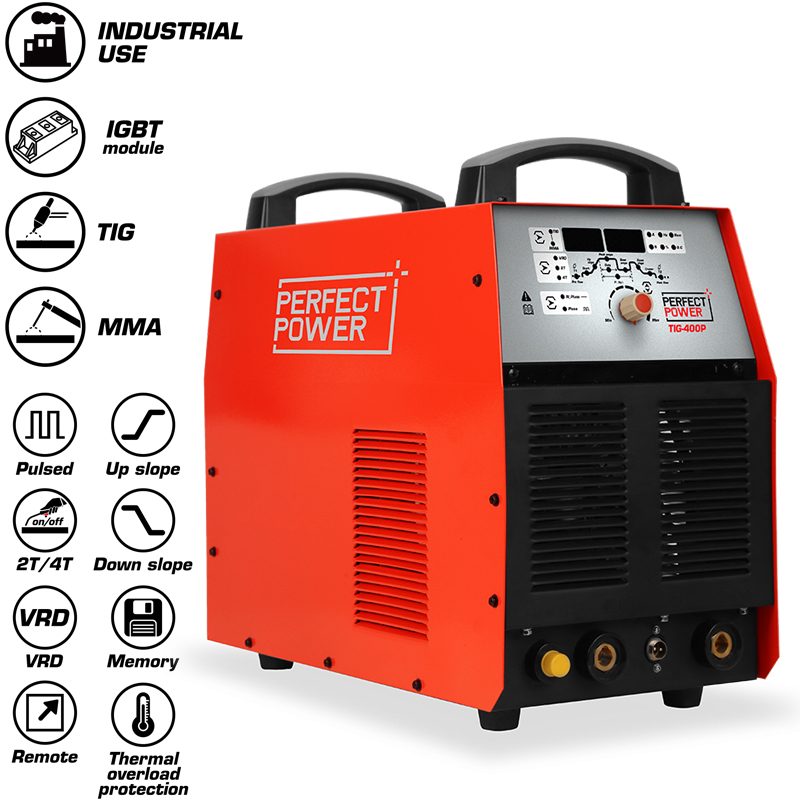

TIG-400P TIG Inverter Welding Machine

1. Multi-function welding: DC TIG, DC pulsed TIG, spot welding, and MMA welding.
2. Industrial purpose IGBT dual-module and heavy-duty cycle.
3. Digital control technology, accurate welding power control.
4. Spot welding for even 0.3mm metal sheet, without deformation.
5. High-frequency arc start with a high success rate.
6. Peak current & time, base current & time adjustable.

Model

TIG-400P

Power input AC(V)

3ph 380V ±15%

Power input frequency(Hz)

50/60

Max. Load Power Capacity(kVA)

10.8

Rated current input(A)

16.4

Rated output current(A)/voltage(V)

400/26.0(TIG) 350/34.0(MMA)

Welding current range(A)

10-400(TIG) 30-350(MMA)

Open circuit voltage DC(V)

69

Rated duty cycle(%)

60

IP grade

IP21S

Insulation grade

F

Dimensions(mm)

605*310*595

N.W.(kg)

50.1
