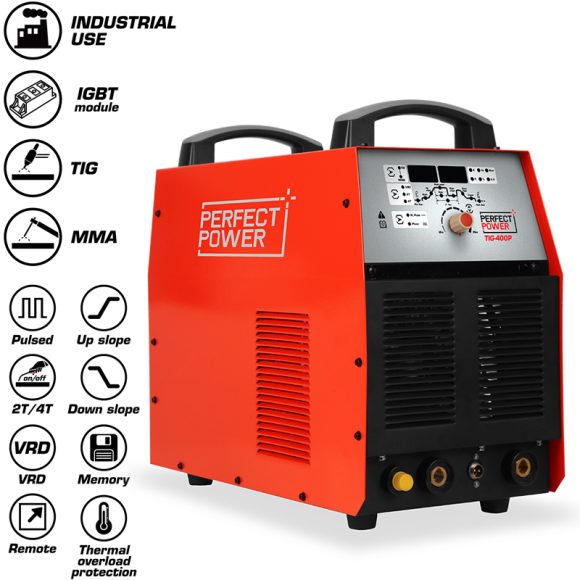

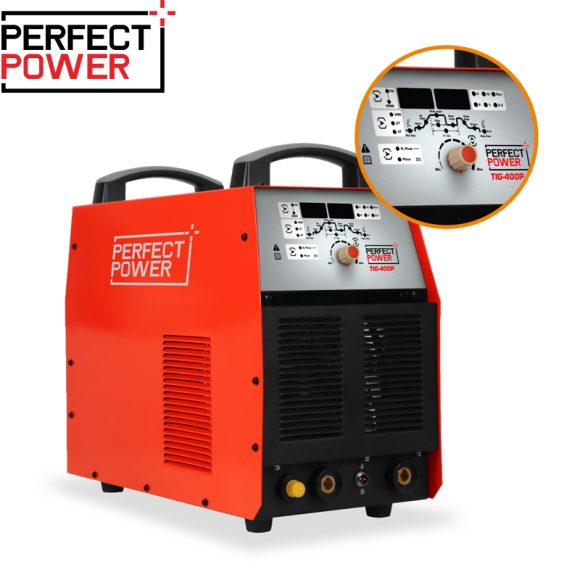

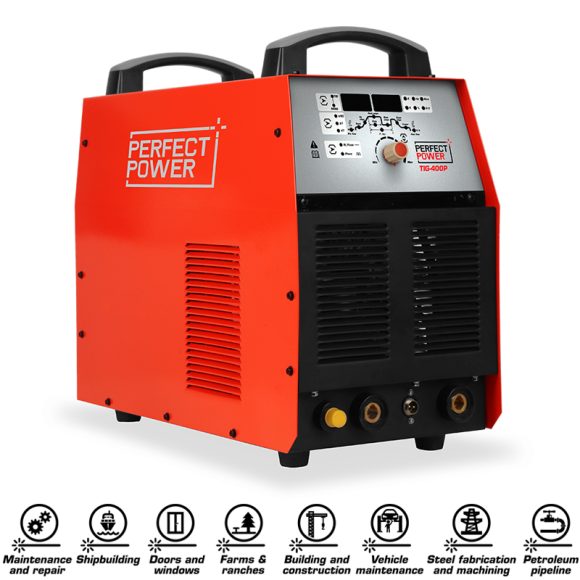

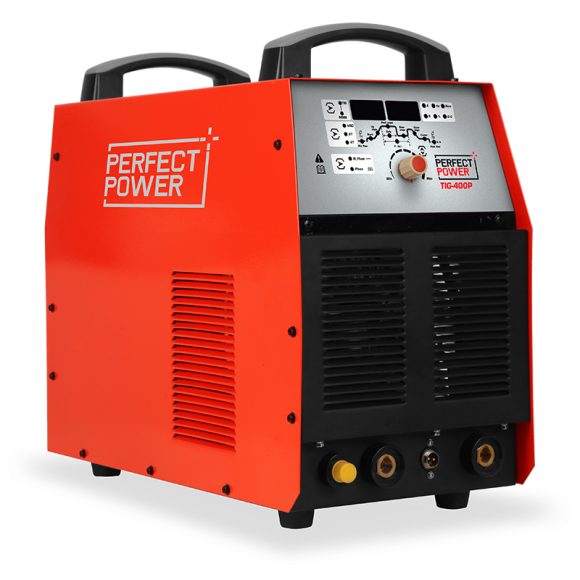

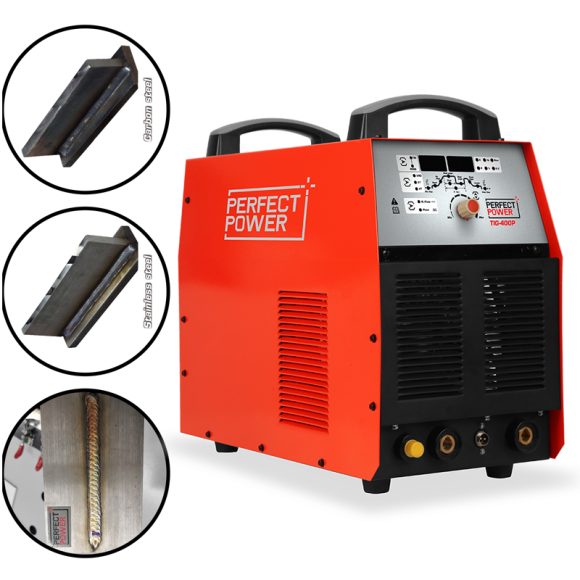

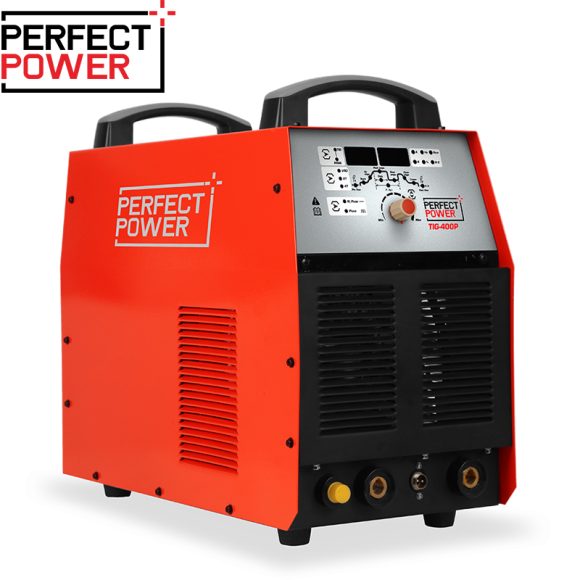

1. Multi-function welding: DC TIG, DC pulsed TIG, spot welding, and MMA welding. 2. Industrial purpose IGBT dual-module and heavy-duty cycle. 3. Digital control technology, accurate welding power control. 4. Spot welding for even 0.3mm metal sheet, without deformation. 5. High-frequency arc start with a high success rate. 6. Peak current & time, base current…
Availability: In Stock
1. Multi-function welding: DC TIG, DC pulsed TIG, spot welding, and MMA welding.
2. Industrial purpose IGBT dual-module and heavy-duty cycle.
3. Digital control technology, accurate welding power control.
4. Spot welding for even 0.3mm metal sheet, without deformation.
5. High-frequency arc start with a high success rate.
6. Peak current & time, base current & time adjustable.
| Model | TIG-400P |
|---|---|
| Power input AC(V) | 3ph 380V ±15% |
| Power input frequency(Hz) | 50/60 |
| Max. Load Power Capacity(kVA) | 10.8 |
| Rated current input(A) | 16.4 |
| Rated output current(A)/voltage(V) | 400/26.0（TIG） 350/34.0（MMA） |
| Welding current range(A) | 10-400（TIG） 30-350（MMA） |
| Open circuit voltage DC(V) | 69 |
| Rated duty cycle(%) | 60 |
| IP grade | IP21S |
| Insulation grade | F |
| Dimensions(mm) | 605*310*595 |
| N.W.(kg) | 50.1 |
